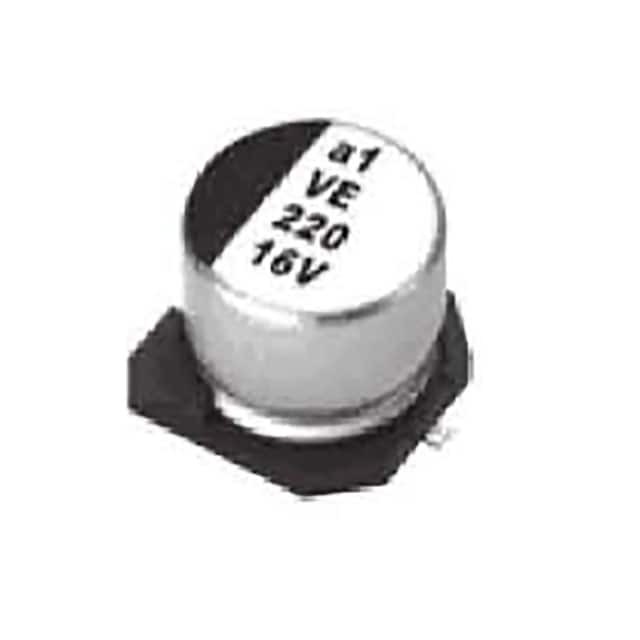

Same model may have multiple batches, images only for reference.

VE-101M1CTR-0605S

Get a Quote

Part No	VE-101M1CTR-0605S
Manufacturer	Surge Components
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 16V SMD / 100 μF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Datasheet	VE-101M1CTR-0605S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Surge Components
Series	VE
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Active
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	89 mA @ 120 Hz
Ripple Current @ High Frequency	124.6 mA @ 10 kHz
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.217" (5.50mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	1,000 pcs
ECCN	3A001
HTSUS	8532.22.0020
Win Source Part Number	902520-VE-101M1CTR-0605S
Ultra Librarian 3D Model	Ultra Librarian VE-101M1CTR-0605S CAD Model

Alternative Products

Description

The 902520-VE-101M1CTR-0605S is an aluminum electrolytic capacitor from the VE series, manufactured by Surge Components.

Capacitance: 100μF
Tolerance: ±20%
Rated Voltage: 16V
Ripple Current (Low Frequency 120Hz): 89mA
Ripple Current (High Frequency 10kHz): 124.6mA
Mounting Type: Surface Mount
Package: Radial, can - SMD
Size/Dimension: 0.248" (6.30mm) diameter
Height (Seated): 0.217" (5.50mm)
Temperature Range: -40°C to 85°C
Lifetime: 2000 hours @ 85°C
Status: Active
