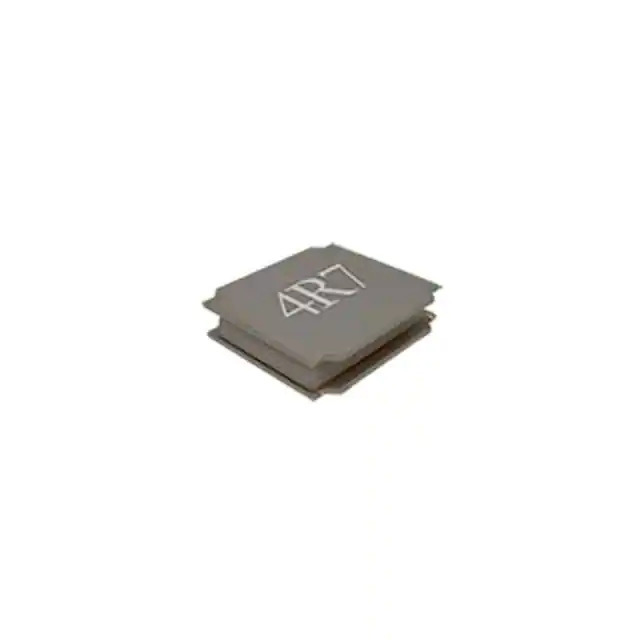

Same model may have multiple batches, images only for reference.
WPN4012H1R0MTY01 Sunlord
Same model may have multiple batches, images only for reference.

WPN4012H1R0MTY01

Part No WPN4012H1R0MTY01
Manufacturer Sunlord
Catalog Fixed Inductors
Description FIXED IND 1UH 3.6A 49 MOHM SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Shenzhen Sunlord Electronics Co., Ltd.
Series WPN
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 3.6 A
Current - Saturation (Isat) 4.5A
Shielding Shielded
DC Resistance (DCR) 49mOhm Max
Q @ Freq -
Frequency - Self Resonant 56MHz
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370381-WPN4012H1R0MTY01
Ultra Librarian 3D Model Ultra Librarian WPN4012H1R0MTY01 CAD Model

Description

The WPN4012H1R0MTY01 is a surface mount fixed inductor manufactured by Shenzhen Sunlord Electronics Co., Ltd.

  • Series: WPN
  • Mounting Type: Surface Mount
  • Package Size: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Core Material: Ferrite
  • Inductance: 1 µH
  • Inductance Tolerance: ±20%
  • DC Resistance (DCR): 49mOhm Max
  • Current Rating: 3.6 A
  • Current Saturation (Isat): 4.5A
  • Temperature Range: -40°C to 125°C
