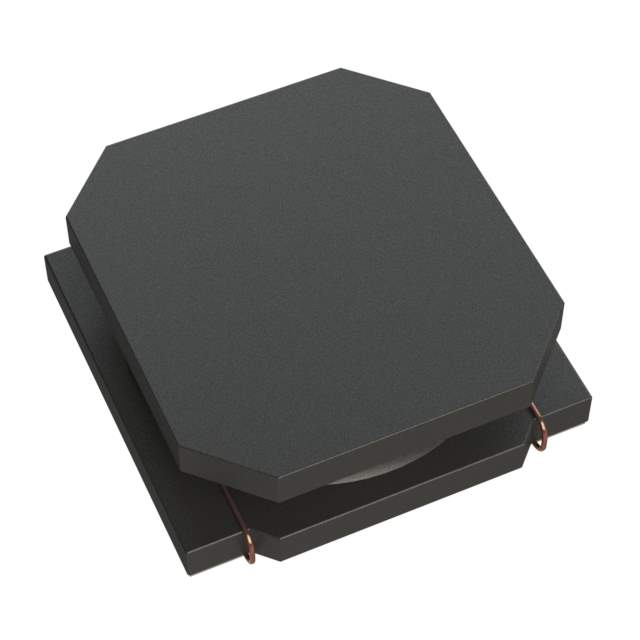

SWPA5012S4R7NT

Name: SWPA5012S4R7NT
Brand: Sunlord
SKU: 1328990
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SWPA5012S4R7NT
Manufacturer	Sunlord
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 1.3A 197MOHM SMD / 4.7 µH Shielded Drum Core, Wirewound Inductor 1.3 A 197mOhm Max Nonstandard
Datasheet	SWPA5012S4R7NT Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Shenzhen Sunlord Electronics Co., Ltd.
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	4.7 µH
Tolerance	±30%
Current Rating (Amps)	1.3 A
Current - Saturation (Isat)	2.2A
Shielding	Shielded
DC Resistance (DCR)	197mOhm Max
Frequency - Self Resonant	31MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max)	0.047" (1.20mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	3442-SWPA5012S4R7NTTR
Standard Package	4,500
Win Source Part Number	1328990-SWPA5012S4R7NT
Ultra Librarian 3D Model	Ultra Librarian SWPA5012S4R7NT CAD Model

Alternative Products

Description

The SWPA5012S4R7NT is a shielded drum core wirewound inductor manufactured by Shenzhen Sunlord Electronics Co., Ltd.

Type: Drum Core Wirewound
Shielding: Shielded
Size: 0.197 inches in length and width
Height Seated: 0.047 inches
Inductance: 4.7 µH
Tolerance: ±30%
DC Resistance: 197mOhm max
Current Rating: 1.3A
Saturation Current: 2.2A
Self-Resonant Frequency: 31MHz
Operating Temperature: -40°C to 125°C
Mounting Type: Surface Mount
Case / Package: Nonstandard
Package: 4,500 pieces
