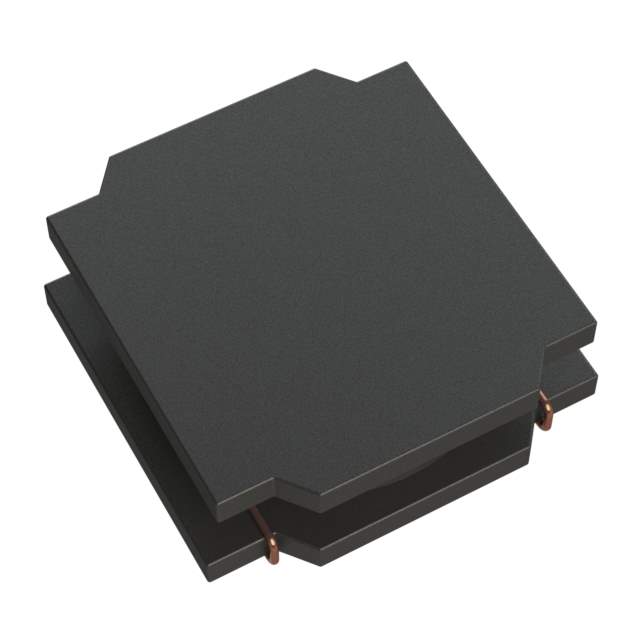

SWPA3012S5R6MT

Name: SWPA3012S5R6MT
Brand: Sunlord
SKU: 1097460
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SWPA3012S5R6MT
Manufacturer	Sunlord
Catalog	Fixed Inductors
Description	FIXED IND 5.6UH 1.13A 226MOHM SM / 5.6 µH Shielded Drum Core, Wirewound Inductor 1.13 A 226mOhm Max Nonstandard
Datasheet	SWPA3012S5R6MT Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Shenzhen Sunlord Electronics Co., Ltd.
Series	SWPA
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	5.6 µH
Tolerance	±20%
Current Rating (Amps)	1.13 A
Current - Saturation (Isat)	800mA
Shielding	Shielded
DC Resistance (DCR)	226mOhm Max
Frequency - Self Resonant	61MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max)	0.047" (1.20mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	3442-SWPA3012S5R6MTTR
Standard Package	2,000
Win Source Part Number	1097460-SWPA3012S5R6MT
Ultra Librarian 3D Model	Ultra Librarian SWPA3012S5R6MT CAD Model

Alternative Products

Description

The SWPA3012S5R6MT is a drum core, wirewound inductor with a ferrite core material. It is shielded and has an inductance of 5.6 µH with a tolerance of ±20%.

Core Type: Drum Core, Wirewound
Core Material: Ferrite
Shielding: Shielded
Inductance: 5.6 µH
Tolerance: ±20%
DC Resistance: 226mOhm Max
Current Rating: 1.13 A
Self-Resonant Frequency: 61MHz
Mounting Type: SMD (SMT)
Package: Tape and Reel (TR)
Height: 0.047" (1.20mm)
Dimension: 0.118" L x 0.118" W (3.00mm x 3.00mm)
Temperature Range: -40°C to 125°C
Application: Inductors, Coils, Chokes, Fixed Inductors
