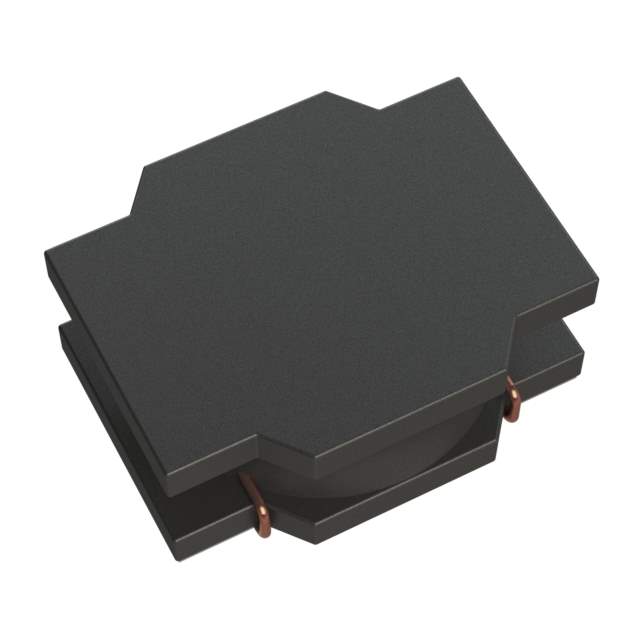

The SWPA series of inductors are a drum core, wirewound type that is shielded to prevent electromagnetic interference. With an inductance of 1.5 µH and a tolerance of ±30%, the SWPA252010S1R5NT is a reliable component for use in a variety of electronic applications and is manufactured by Shenzhen Sunlord Electronics Co., Ltd.

• Inductance: 1.5 µH
• Tolerance: ±30%
• Package: Tape & Reel (TR)
• Mounting: Surface Mount Technology (SMT)
• DC Resistance (DCR): 182mOhm max
• Current Rating: 1.3A
• Inductance Test Frequency: 100 kHz
• Self-Resonant Frequency: 81MHz
• Operating Temperature Range: -40°C to 125°C
• Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
• Height Seated (max): 0.039" (1.00mm)
