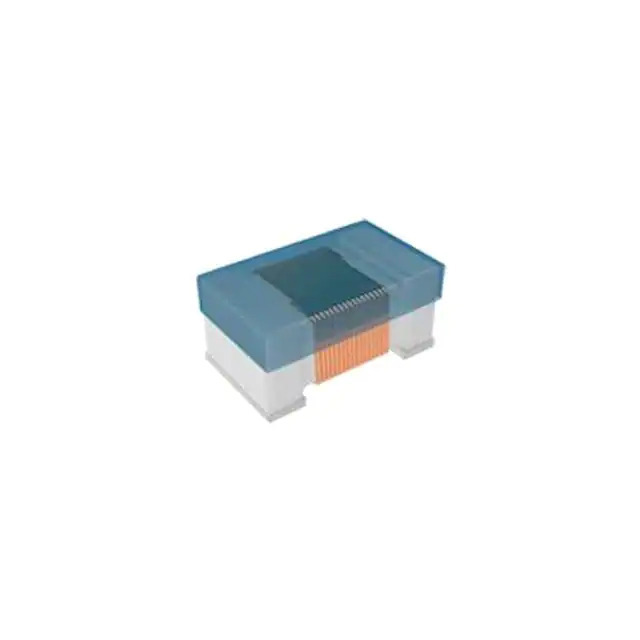

Same model may have multiple batches, images only for reference.
SDWL1608CR13JSTFM01 Sunlord
Same model may have multiple batches, images only for reference.

SDWL1608CR13JSTFM01

Part No SDWL1608CR13JSTFM01
Manufacturer Sunlord
Catalog Fixed Inductors
Description FIXED IND 130NH 170MA 1.4OHM SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Shenzhen Sunlord Electronics Co., Ltd.
Series SDWL-C-M
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 130 nH
Tolerance ±5%
Current Rating (Amps) 170 mA
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 1.4Ohm Max
Q @ Freq 32 @ 150MHz
Frequency - Self Resonant 1.45GHz
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 MHz
Features -
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.063" L x 0.035" W (1.60mm x 0.90mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370126-SDWL1608CR13JSTFM01
Ultra Librarian 3D Model Ultra Librarian SDWL1608CR13JSTFM01 CAD Model

Description

The SDWL1608CR13JSTFM01 is a drum core, wirewound inductor manufactured by Shenzhen Sunlord Electronics Co., Ltd.

  • Inductance: 130 nH
  • Current Rating: 170 mA
  • Construction: Unshielded
  • DC Resistance: 1.4 Ohm
  • Tolerance: ±5%
  • Operating Temperature: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Package: 0603 (1608 Metric)
  • Material: Ceramic
  • Self-Resonant Frequency: 1.45 GHz
  • Size: 0.063" L x 0.035" W (1.60mm x 0.90mm)
  • Height: 0.039" (1.00mm)
