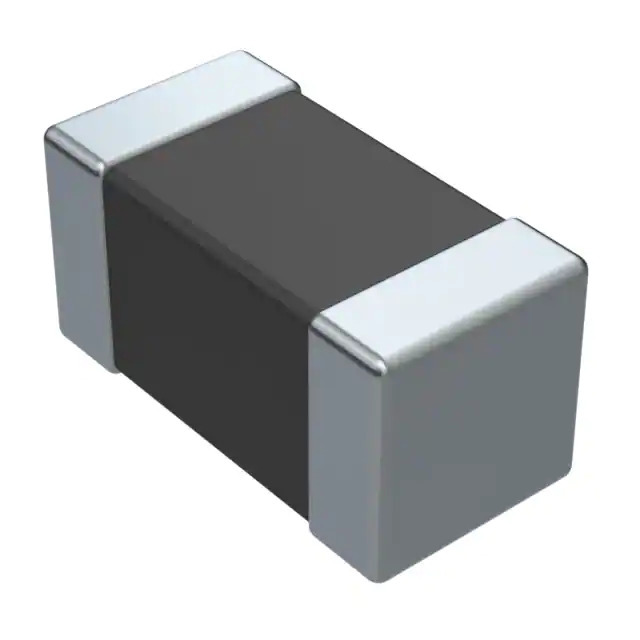

MZAH1005F101-1R1TF Sunlord
Same model may have multiple batches, images only for reference.

MZAH1005F101-1R1TF

Part No MZAH1005F101-1R1TF
Manufacturer Sunlord
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 100 OHM 0402 1LN
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Shenzhen Sunlord Electronics Co., Ltd.
Series MZA
Package Tape & Reel
Product Status Active
Filter Type -
Number of Lines 1
Impedance @ Frequency 100 Ohms @ 900 MHz
Current Rating (Max) 1.1A
DC Resistance (DCR) (Max) 100mOhm
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Height (Max) 0.026" (0.65mm)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369275-MZAH1005F101-1R1TF
Ultra Librarian 3D Model Ultra Librarian MZAH1005F101-1R1TF CAD Model

Description

The MZAH1005F101-1R1TF is a ferrite bead chip designed by Shenzhen Sunlord Electronics Co., Ltd.

  • Series: MZA
  • Packaging: Tape & Reel (TR)
  • Size / Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Height - Seated (Max): 0.026" (0.65mm)
  • Mounting Type: Surface Mount
  • Current Rating (Max): 1.1A
  • DC Resistance (DCR) (Max): 100mOhm
  • Impedance @ Frequency: 100 Ohms @ 900 MHz
  • Operating Temperature: -55°C ~ 125°C
  • Function: Filters
