Same model may have multiple batches, images only for reference.

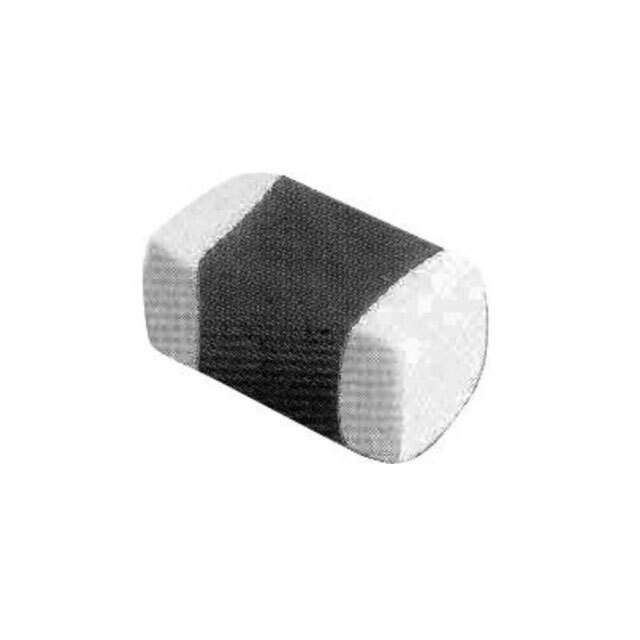

MPH160805S1R0MT Real Image
Same model may have multiple batches, images only for reference.

MPH160805S1R0MT

Part No MPH160805S1R0MT
Manufacturer Sunlord
Catalog Fixed Inductors
Description FIXED IND 1UH 800MA 400MOHM SMD / 1 µH Shielded Multilayer Inductor 800 mA 400mOhm Max 0603 (1608 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Shenzhen Sunlord Electronics Co., Ltd.
Series MPH
Package Tape & Reel
Type Multilayer
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 800 mA
Current - Saturation (Isat) 580mA
Shielding Shielded
DC Resistance (DCR) 400mOhm Max
Frequency - Self Resonant 90MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Standard Package 5,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1351620-MPH160805S1R0MT
Ultra Librarian 3D Model Ultra Librarian MPH160805S1R0MT CAD Model

Description

The MPH160805S1R0MT is a shielded fixed inductor from the MPH series by Shenzhen Sunlord Electronics Co., Ltd. It is a multilayer type inductor that comes in tape and reel packaging.

  • Type: Multilayer
  • Packaging: Tape and Reel
  • Length: 0.063 inches
  • Width: 0.031 inches
  • Height (Seated): 0.022 inches
  • Inductance: 1 microhenry
  • Tolerance: ±20%
  • DC Resistance (DCR): 400 milliohms maximum
  • Current Rating: 800 milliamperes
  • Inductance Frequency: 1 megahertz
  • Self-Resonant Frequency: 90 megahertz
  • Operating Temperature: -55°C to 125°C
