Same model may have multiple batches, images only for reference.

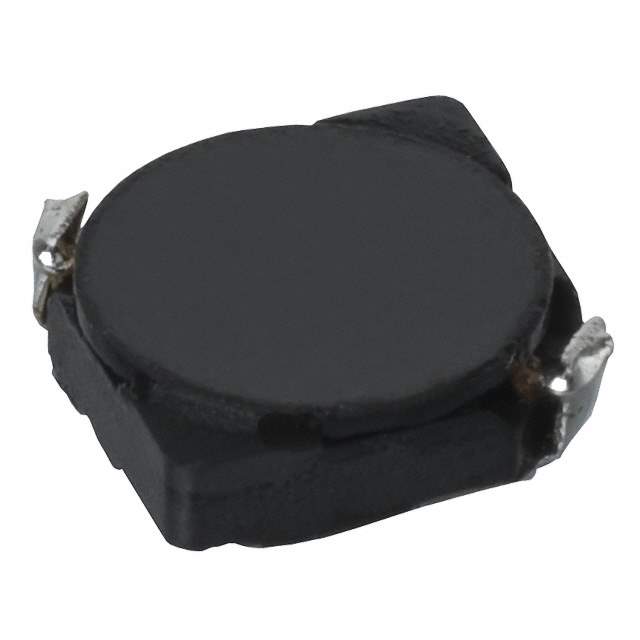

CDRH5D28NP-3R0NC Real Image
Same model may have multiple batches, images only for reference.

CDRH5D28NP-3R0NC

Part No CDRH5D28NP-3R0NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 3UH 2.4A 24 MOHM SMD / 3 µH Shielded Inductor 2.4 A 24mOhm Max Nonstandard
Datasheet
CDRH5D28NP-3R0NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Material - Core Ferrite
Inductance 3 µH
Tolerance ±30%
Current Rating (Amps) 2.4 A
Shielding Shielded
DC Resistance (DCR) 24mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.224" L x 0.224" W (5.70mm x 5.70mm)
Height - Seated (Max) 0.118" (3.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number Q13079649,308-2177-6,308-2177-2,308-2177-1,CDRH5D28NP-3R0NCTR,CDRH5D28NP-3R0NCTR-ND
Standard Package 2,000
Win Source Part Number 1330223-CDRH5D28NP-3R0NC
Ultra Librarian 3D Model Ultra Librarian CDRH5D28NP-3R0NC CAD Model

Description

The Sumida America Components Inc. CDRH5D28NP-3R0NC inductor is a ferrite core surface mount device with a 3μH inductance and a current rating of 2.4A.

  • Manufacturer: Sumida America Components Inc.
  • Core Material: Ferrite
  • Mounting Type: Surface Mount
  • Inductance: 3μH
  • Current Rating: 2.4A
  • Tolerance: ±30%
  • DC Resistance: 24mOhm max
  • Operating Temperature: -40°C to 100°C
  • Packaging: Reel
  • Shielding: Shielded
  • Size: 0.224" L x 0.224" W (5.70mm x 5.70mm)
