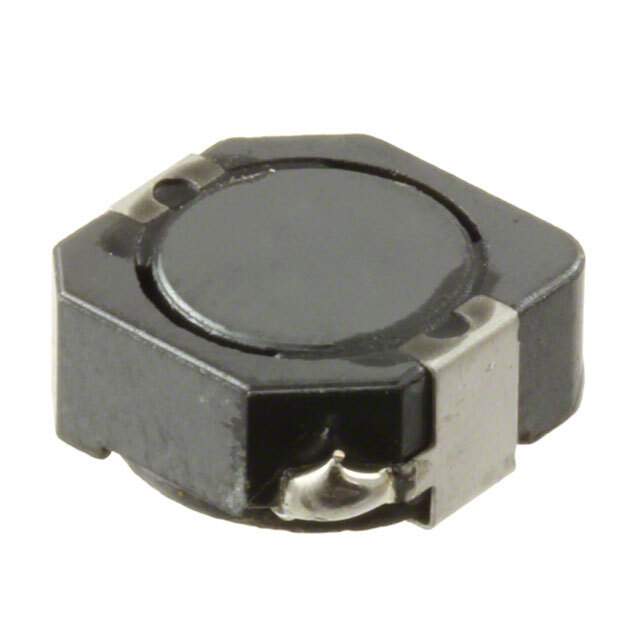

CDRH105RNP-270NC

Part No CDRH105RNP-270NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 27UH 2.6A 69 MOHM SMD / 27 µH Shielded Inductor 2.6 A 69mOhm Max Nonstandard
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Material - Core Ferrite
Inductance 27 µH
Tolerance ±30%
Current Rating (Amps) 2.6 A
Current - Saturation (Isat) 2.7A
Shielding Shielded
DC Resistance (DCR) 69mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max) 0.201" (5.10mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 308-1924-1,308-1924-2,308-1924-6
Standard Package 500
Win Source Part Number 1327611-CDRH105RNP-270NC
Ultra Librarian 3D Model Ultra Librarian CDRH105RNP-270NC CAD Model

Description

The CDRH105RNP-270NC from Sumida America Components Inc. is a fixed inductor that is ideal for use in electronic devices.

  • Shielded: Yes
  • Packaging: Reel
  • Inductance: 27 µH
  • Tolerance: ±30%
  • Operating Temperature Range: -40°C to 100°C
