Same model may have multiple batches, images only for reference.

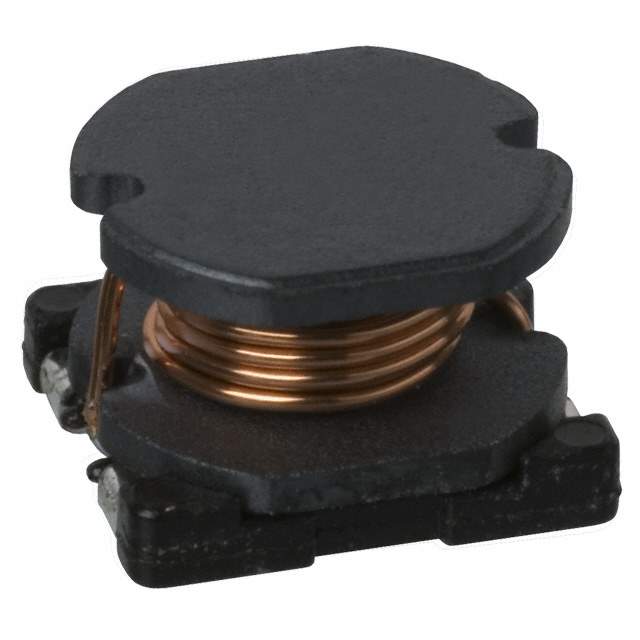

CR75-8R2MC Real Image
Same model may have multiple batches, images only for reference.

CR75-8R2MC

Part No CR75-8R2MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 8.2UH 2.5A 41.6MOHM SM / 8.2 µH Unshielded Drum Core, Wirewound Inductor 2.5 A 41.6mOhm Max Nonstandard
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series CR75
Package Tape & Reel (TR)
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 8.2 µH
Tolerance ±20%
Current Rating (Amps) 2.5 A
Shielding Unshielded
DC Resistance (DCR) 41.6mOhm Max
Frequency - Self Resonant 18MHz
Temperature Range - Operating -30°C ~ 100°C
Inductance Frequency - Test 7.96 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) 0.217" (5.50mm)
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 308-1267-1,308-1267-2,CR758R2MC
Standard Package 1,000
Win Source Part Number 1051651-CR75-8R2MC
Ultra Librarian 3D Model Ultra Librarian CR75-8R2MC CAD Model

Description

The CR75-8R2MC is an unshielded fixed inductor from Sumida America Components Inc. that is suitable for various applications.

  • Package: Nonstandard package 0.307" L x 0.276" W (7.80mm x 7.00mm)
  • Height - Seated (Max): 0.217" (5.50mm)
  • Inductance: 8.2 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 41.6mOhm max
  • Current Rating: Up to 2.5A
  • Operating Temperature: -30°C to 100°C
  • Type: Drum core, wirewound
  • RoHS: Not RoHS compliant
  • Status: Obsolete
