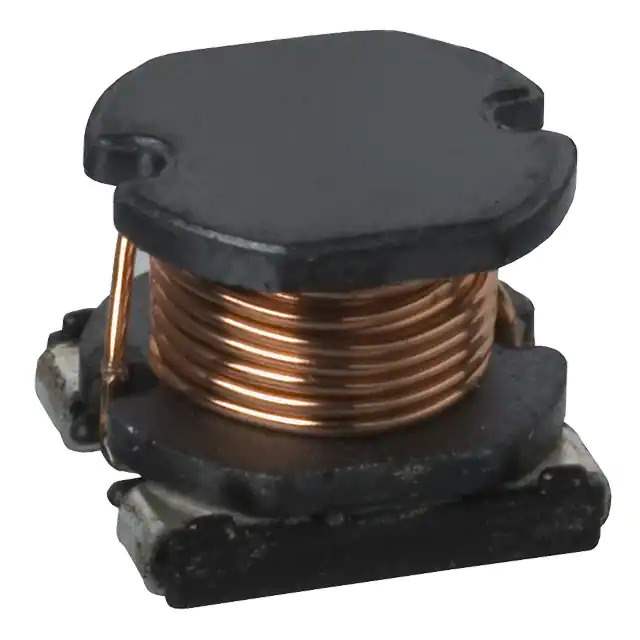

CR54NP-560KC Real Image
Same model may have multiple batches, images only for reference.

CR54NP-560KC

Part No CR54NP-560KC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 56UH 680MA 420MOHM SMD / 56 μH Unshielded Drum Core, Wirewound Inductor 680 mA 420mOhm Max Nonstandard
Datasheet
CR54NP-560KC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CR54
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 56 µH
Tolerance ±10%
Current Rating (Amps) 680 mA
Shielding Unshielded
DC Resistance (DCR) 420mOhm Max
Frequency - Self Resonant 12.1MHz
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 2.52 MHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.228" L x 0.209" W (5.80mm x 5.30mm)
Height - Seated (Max) 0.191" (4.85mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 867166-CR54NP-560KC
Ultra Librarian 3D Model Ultra Librarian CR54NP-560KC CAD Model

Description

The 867166-CR54NP-560KC is a drum core, wirewound fixed inductor manufactured by Sumida America Components Inc.

  • Series: CR54
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel (TR)
  • Size / Dimension: 0.228" L x 0.209" W (5.80mm x 5.30mm)
  • Inductance: 56 μH
  • Tolerance: ±10%
  • Maximum Seated Height: 0.191" (4.85mm)
  • Standard Package: 1,500 pieces
