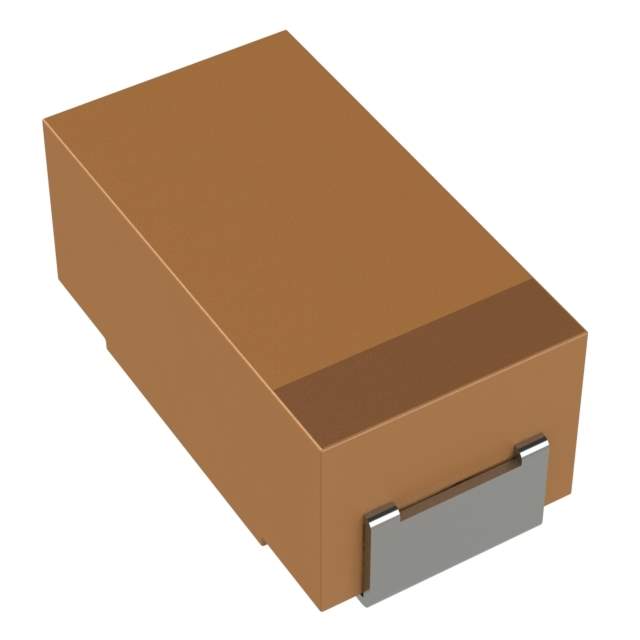

TPSC226M020R0150 Real Image
Same model may have multiple batches, images only for reference.

TPSC226M020R0150

Part No TPSC226M020R0150
Manufacturer AVX Corporation
Catalog Tantalum Capacitors
Description CAP TANT 22UF 20V 20% 2312
Datasheet
TPSC226M020R0150 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Capacitance 22μF
Tolerance ±20%
Voltage Rating 20V
Type Molded
ESR 150 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Max) 0.110" (2.80mm)
Manufacturer Size Code C
Features General Purpose
Win Source Part Number 1113681-TPSC226M020R0150
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TPSC226M020R0150 CAD Model

Description

The 430991 is a molded type general-purpose capacitor with a capacitance of 22μF and a voltage rating of 20V.

  • Capacitance: 22μF
  • Voltage Rating: 20V
  • Tolerance: ±20%
  • ESR: 150 mOhm
  • Mounting Type: Surface Mountable
  • Packaging: Reel
  • Dimension: 0.236" L x 0.126" W (6.00mm x 3.20mm)
  • Height: 0.110" (2.80mm)
  • Temperature Range: -55°C to 125°C
  • Applications: power supplies, DC-DC converters, and general-purpose circuits
  • Supply and Demand Status: sufficient
