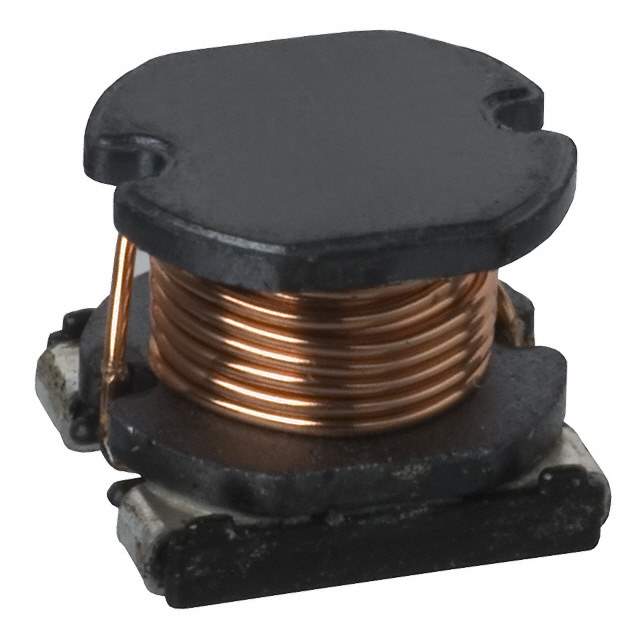

Same model may have multiple batches, images only for reference.

CR54NP-470LC

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CR54NP-470LC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 47UH 720MA 370MOHM SMD / 47 µH Unshielded Drum Core, Wirewound Inductor 720 mA 370mOhm Max Nonstandard
Datasheet	CR54NP-470LC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Sumida America Components Inc.
Series	CR54
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	47 µH
Tolerance	±15%
Current Rating (Amps)	720 mA
Shielding	Unshielded
DC Resistance (DCR)	370mOhm Max
Temperature Range - Operating	-40°C ~ 100°C
Inductance Frequency - Test	2.52 MHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.228" L x 0.209" W (5.80mm x 5.30mm)
Height - Seated (Max)	0.191" (4.85mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	308-2212-2,308-2212-6,CR54NP-470LCTR,CR54NP-470LCTR-ND,308-2212-1
Standard Package	1,500
Win Source Part Number	991446-CR54NP-470LC
Ultra Librarian 3D Model	Ultra Librarian CR54NP-470LC CAD Model

Alternative Products

Description

The Sumida America Components Inc. CR54NP-470LC is a drum core, wirewound fixed inductor that is designed for use in various electronic applications. It is an unshielded type of inductor that has a height of 0.191 inches and a package of tape and reel.

Height: 0.191 inches
Package: Tape and reel
Inductance: 47 µH
Maximum DC Resistance: 370mOhm
MSL Level: 1
Current Rating: 720mA
