Same model may have multiple batches, images only for reference.

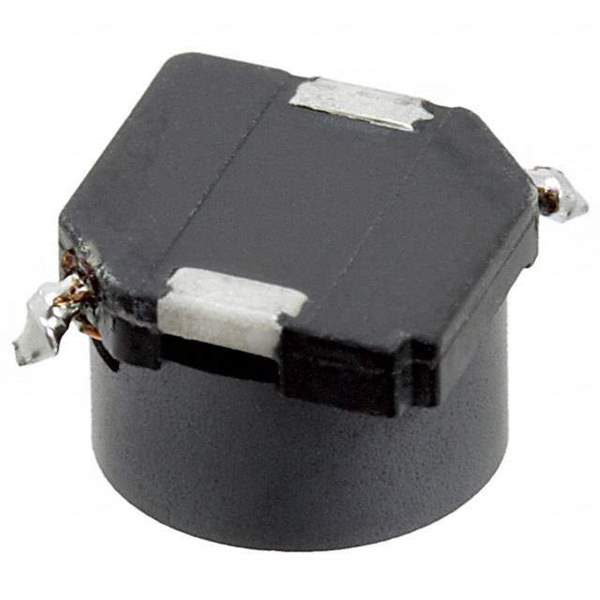

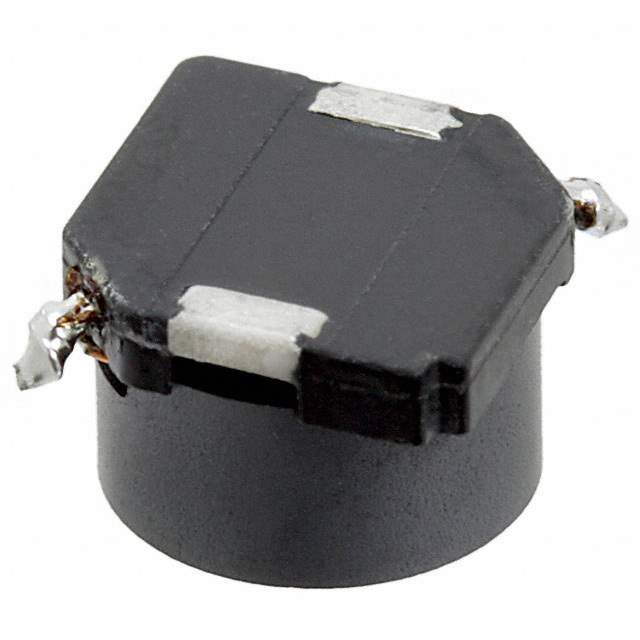

CDRR75NP-681MC Real Image
Same model may have multiple batches, images only for reference.

CDRR75NP-681MC

Part No CDRR75NP-681MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 680UH 310MA 1.866 OHM / 680 µH Shielded Inductor 310 mA 1.866Ohm Max Nonstandard
Datasheet
CDRR75NP-681MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRR
Package Tape & Reel
Material - Core Ferrite
Inductance 680 µH
Tolerance ±20%
Current Rating (Amps) 310 mA
Current - Saturation (Isat) 160mA
Shielding Shielded
DC Resistance (DCR) 1.866Ohm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.272" L x 0.272" W (6.90mm x 6.90mm)
Height - Seated (Max) 0.189" (4.80mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names CDRR75NP681MC,308-1686-1,308-1686-2,308-1686-6
Standard Package 1,000
Win Source Part Number 1165834-CDRR75NP-681MC
Ultra Librarian 3D Model Ultra Librarian CDRR75NP-681MC CAD Model

Description

The Sumida America Components Inc. 1165834-CDRR75NP-681MC is a fixed inductor with an inductance of 680 µH and a tolerance of ±20%.

  • Packaging: Tape & Reel
  • Shielding: Shielded
  • Height: 0.189" (4.80mm)
  • Dimension: 0.272" L x 0.272" W (6.90mm x 6.90mm)
  • Mounting: SMD (SMT)
  • DC Resistance (DCR): 1.866Ohm Max
  • Alternative Part: CDRR75NP681MC
  • MSL Level: 1 (Unlimited)
  • Current Rating: 310 mA
  • Inductance Frequency-Test: 100 kHz
