Same model may have multiple batches, images only for reference.

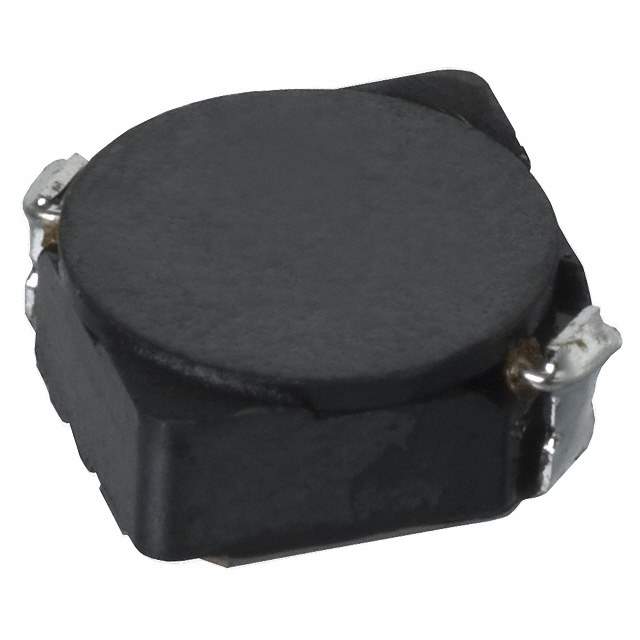

CDRH6D28NP-3R9NC Real Image
Same model may have multiple batches, images only for reference.

CDRH6D28NP-3R9NC

Part No CDRH6D28NP-3R9NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 3.9UH 2.6A 27 MOHM SMD
Datasheet
CDRH6D28NP-3R9NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 3.9μH
Tolerance ±30%
Current Rating 2.6A
DC Resistance (DCR) 27 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 050261-CDRH6D28NP-3R9NC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDRH6D28NP-3R9NC CAD Model

Description

CDRH6D28NP-3R9NC Power Inductor

The CDRH6D28NP-3R9NC is a robust surface-mount power inductor designed for high-frequency applications. This compact inductor offers a low DC resistance and high current handling capacity, making it ideal for power management and conversion tasks.

  • Features and Benefits:
    • High reliability with low electromagnetic interference (EMI)
    • Low profile and compact design
    • Operation over a wide frequency range
    • Compatible with automated mounting machines
  • Applications:
    • Switching power supplies
    • DC-DC converters
    • Power line filtering
    • Telecommunications equipment
  • Additional Details:
    • High saturation current supports stable performance
    • Shielded construction to reduce noise interference
