Same model may have multiple batches, images only for reference.

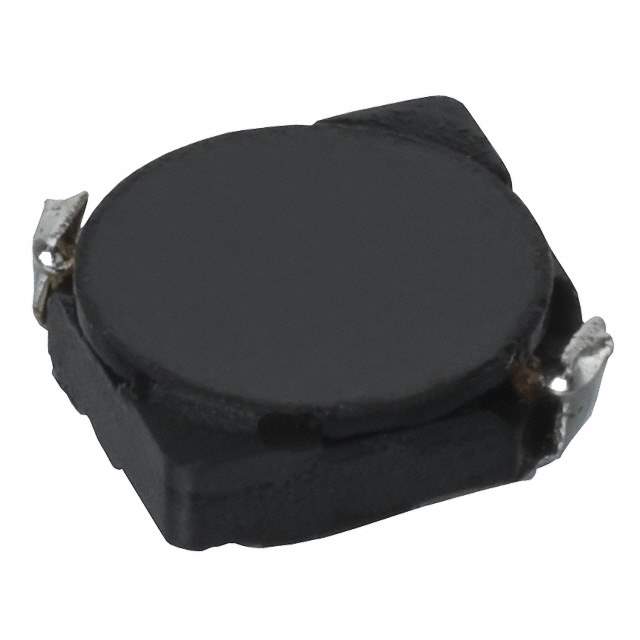

CDRH5D28NP-2R5NC Real Image
Same model may have multiple batches, images only for reference.

CDRH5D28NP-2R5NC

Part No CDRH5D28NP-2R5NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 2.5UH 2.6A 18 MOHM SMD
Datasheet
CDRH5D28NP-2R5NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 2.5μH
Tolerance ±30%
Current Rating 2.6A
DC Resistance (DCR) 18 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 013087-CDRH5D28NP-2R5NC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDRH5D28NP-2R5NC CAD Model

Description

CDRH5D28NP-2R5NC Inductor Description

The CDRH5D28NP-2R5NC inductor offers robust performance with a low resistance profile, making it suitable for applications demanding efficiency and space-saving capabilities.

  • Applications and Projects:
    • Consumer electronic devices
    • LED drivers
    • Chargers and adapters
    • Battery-powered equipment
  • Features and Benefits:
    • Excellent DC current performance
    • Low surface temperature rise
    • Compact and lightweight design
    • High current handling capability
  • Additional Details:
    • Inductance: 2.5μH
    • Effective magnetic shielding
    • Surface mount for efficient assembly
