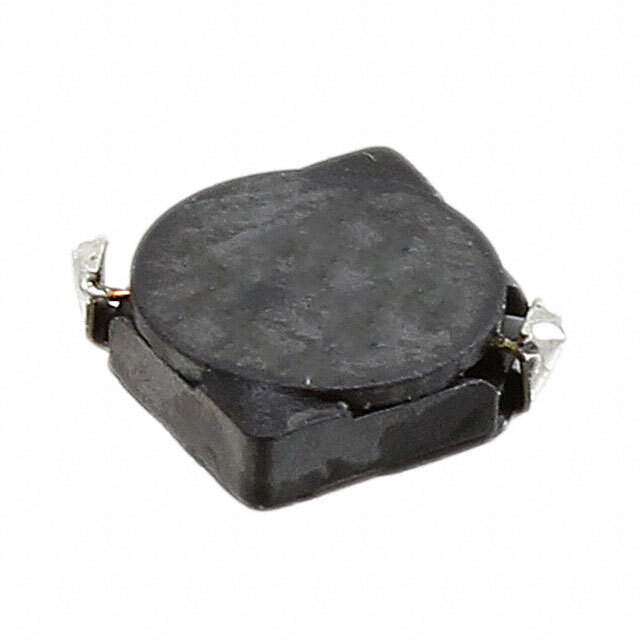

The CDRH5D18NP-470NC is a shielded power inductor manufactured by Sumida America Components Inc. It is designed for use in DC-DC converters and other power supply applications.

Applications:

• DC-DC converters
• Power supplies
• Voltage regulators
• Filtering circuits
• Buck, boost, and buck-boost converters

Features:

• Shielded construction to minimize EMI (Electromagnetic Interference)
• Low DC resistance (DCR) for high efficiency
• High current carrying capacity
• Compact size
• RoHS compliant and lead-free

Benefits:

• Reduces electromagnetic interference
• Improves power supply efficiency
• Handles high current loads
• Saves board space
• Meets environmental regulations

Specifications:

The CDRH5D18NP-470NC has an inductance value of 47uH. The tolerance is typically ±20%. The saturation current is typically around 1.5A to 2A. The DC resistance (DCR) is typically less than 0.2 ohms. The operating temperature range is typically -40°C to +125°C. The dimensions are approximately 5.8mm x 5.8mm x 2.0mm. The shielding is achieved through a magnetic core material.

These inductors are available in tape and reel packaging for automated pick and place assembly.
