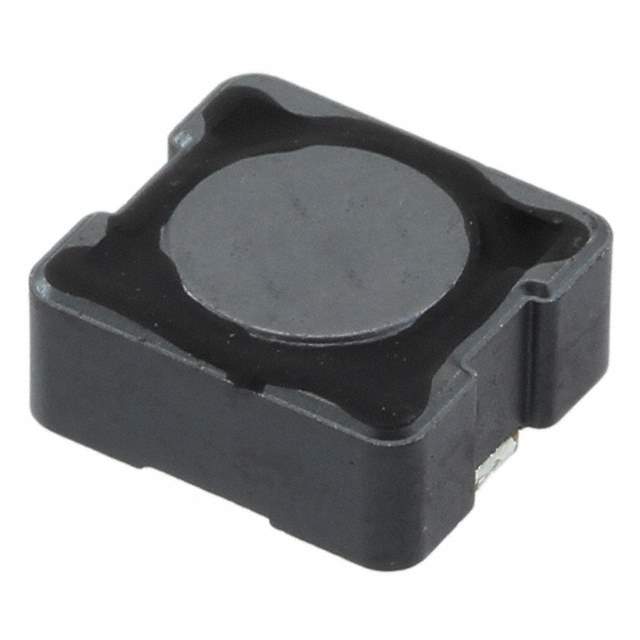

CDRH104R-5R2NC Real Image
Same model may have multiple batches, images only for reference.

CDRH104R-5R2NC

Part No CDRH104R-5R2NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 5.2UH 5.4A 22 MOHM SMD
Datasheet
CDRH104R-5R2NC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Inductance 5.2μH
Tolerance ±30%
Current Rating 5.4A
Current - Saturation 5.5A
DC Resistance (DCR) 22 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 106719-CDRH104R-5R2NC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDRH104R-5R2NC CAD Model

Description

Product Description

Delivering reliable performance, the CDRH104R-5R2NC is a premium power inductor with a 5.2 μH rating. Its design supports a wide range of applications requiring efficient and space-saving components.

Features and Benefits

  • Highly efficient design reduces heat buildup
  • Accommodates high current applications
  • Minimal DC resistance enhances power savings
  • Compliance with RoHS directives

Applications

  • Power management systems
  • Charger circuits
  • Instrumentation devices
  • Networking equipment

Additional Details

The CDRH104R-5R2NC stands out for its compact form and energy-efficiency, playing a critical role in reducing power loss across various innovative projects.
