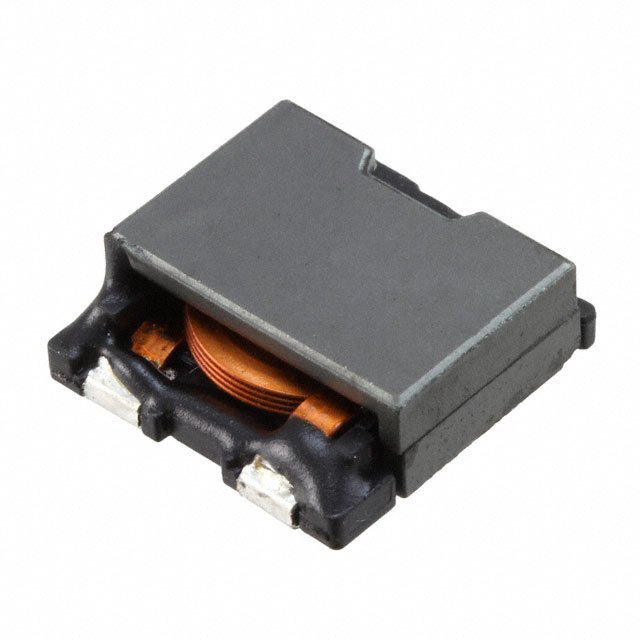

CDEP134NP-2R5MC Sumida America Components Inc.
Same model may have multiple batches, images only for reference.

CDEP134NP-2R5MC

Part No CDEP134NP-2R5MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 2.5UH 10.5A 6.6 MOHM / Inductor Power Shielded Wirewound 2.5uH 20% 100KHz Ferrite 10.5A 0.0066Ohm DCR T/R
Datasheet
CDEP134NP-2R5MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDEP134
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 2.5μH
Tolerance ±20%
Current Rating 10.5A
Current - Saturation 12.8A
Shielding Shielded
DC Resistance (DCR) 6.6 mOhm Max
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.531" L x 0.531" W (13.50mm x 13.50mm)
Height - Seated (Maximum) 0.197" (5.00mm)
Win Source Part Number 771445-CDEP134NP-2R5MC
Popularity Medium
Supply and Demand Status Limited
Family Name CDEP134
Introduction Date December 13, 2001
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian CDEP134NP-2R5MC CAD Model

Description

The Sumida America Components Inc. CDEP134NP-2R5MC product is a high-quality product designed to meet your inductor, coil, and choke needs.

  • Series: CDEP134
  • Packaging: Reel Package
  • Type: Wirewound
  • Operating Temperature Range: -40°C to 125°C
  • Package: Nonstandard
  • Current Rating: 10.5A
  • Shielding: Shielded
  • Inductance: 2.5μH
  • Mounting: SMD
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Current Saturation: 12.8A
  • Test Frequency: 100kHz
  • Family Name: CDEP134
  • Categories: Inductors, Coils, Chokes
  • DC Resistance (DCR): 6.6 mOhm Max
  • Dimension: 0.531" L x 0.531" W (13.50mm x 13.50mm)
  • Height: 0.197" (5.00mm)
  • Alternative Parts: SCEP147H-2R6, SCEP134S-2R5, NPIF134C2R5MTRF
