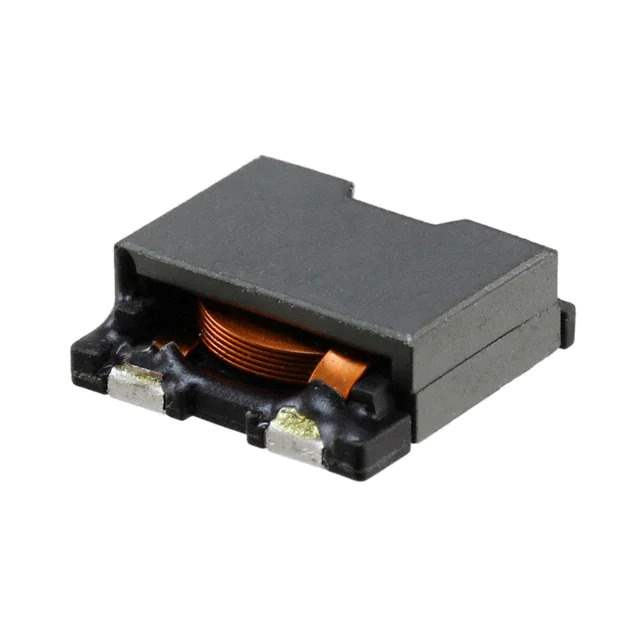

CDEP134NP-1R2MC-H Real Image
Same model may have multiple batches, images only for reference.

CDEP134NP-1R2MC-H

Part No CDEP134NP-1R2MC-H
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 1.2UH 15A 3.7 MOHM SMD
Datasheet
CDEP134NP-1R2MC-H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CDEP134
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.2 µH
Tolerance ±20%
Current Rating (Amps) 15 A
Current - Saturation (Isat) 21A
Shielding Shielded
DC Resistance (DCR) 3.7mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.531" L x 0.531" W (13.50mm x 13.50mm)
Height - Seated (Max) 0.197" (5.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 578036-CDEP134NP-1R2MC-H
Ultra Librarian 3D Model Ultra Librarian CDEP134NP-1R2MC-H CAD Model

Description

The CDEP134NP-1R2MC-H is a fixed inductor manufactured by Sumida America Components Inc. It is a part of the CDEP134 series and features a drum core, wirewound design. With a size of 0.531" L x 0.531" W (13.50mm x 13.50mm) and a height of 0.197" (5.00mm), this inductor is suitable for surface mount applications.

  • Size: 0.531" L x 0.531" W (13.50mm x 13.50mm)
  • Height: 0.197" (5.00mm)
  • Inductance: 1.2 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 3.7mOhm Max
  • Current Rating: 15 A
  • Operating Temperature Range: -40°C to 125°C
