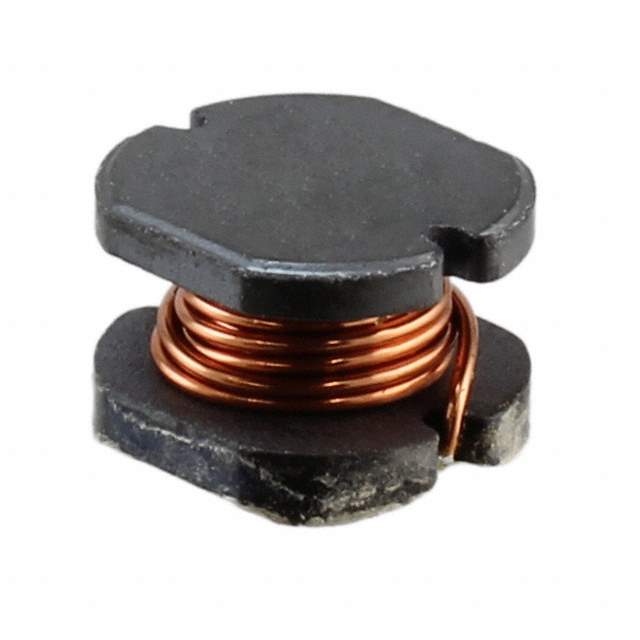

CD75NP-820KC Real Image
Same model may have multiple batches, images only for reference.

CD75NP-820KC

Part No CD75NP-820KC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 82UH 780MA 370 MOHM / CD75
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Sumida America Components Inc.
Packaging Reel
Material - Core Ferrite
Inductance 82μH
Tolerance ±10%
Current Rating (Amps) 780mA
Shielding Unshielded
DC Resistance (DCR) 370mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 2.52MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Maximum) 0.217" (5.50mm)
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804427-CD75NP-820KC
Ultra Librarian 3D Model Ultra Librarian CD75NP-820KC CAD Model

Description

The Sumida America Components Inc. CD75NP-820KC is an inductance electronic component from Sumida America Components Inc..

  • Shielding: Unshielded
  • Inductance: 82μH ±10%
  • Core Material: Ferrite
  • DC Resistance: 370mOhm Max
  • Temperature Range: -40°C to 100°C
  • Dimensions: 0.307" L x 0.276" W (7.80mm x 7.00mm)
  • Height Seated (Maximum): 0.217" (5.50mm)
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 500
  • Current Rating: 780mA
  • Inductance Frequency-Test: 2.52MHz
