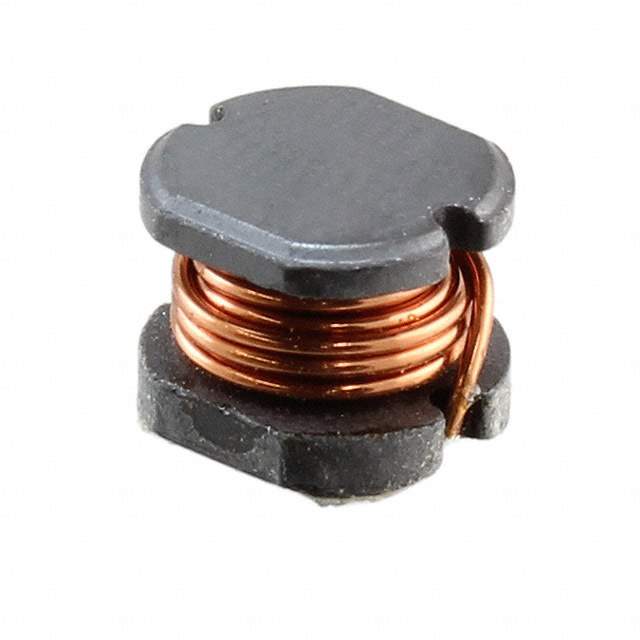

CD54NP-101KC Real Image
Same model may have multiple batches, images only for reference.

CD54NP-101KC

Part No CD54NP-101KC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 100UH 520MA 700 MOHM
Datasheet
CD54NP-101KC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 100μH
Tolerance ±10%
Current Rating 520mA
DC Resistance (DCR) 700 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 1kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.191" (4.85mm)
Win Source Part Number 127006-CD54NP-101KC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CD54NP-101KC CAD Model

Description

Description

The CD54NP-101KC is a high-inductance 100uH power inductor, designed to handle significant current. Its ferrite core and low DC resistance make it an excellent choice for power supply applications.

Features and Benefits

  • 100uH inductance value
  • Low DC resistance
  • High current handling
  • Compact and reliable

Applications

  • DC-DC converters
  • Power supply circuits
  • EMI filtering
  • Energy storage inductor

Additional Details

Engineered for high efficiency, the CD54NP-101KC can significantly reduce energy loss in power applications.
