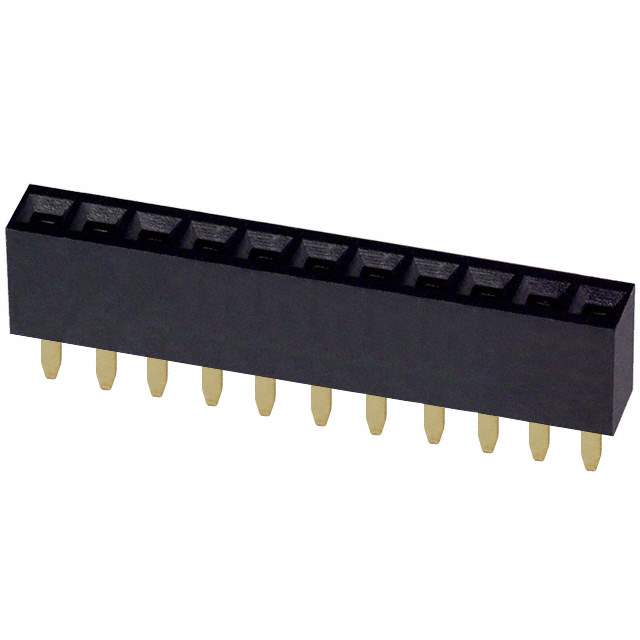

PPPC111LFBN-RC

Name: PPPC111LFBN-RC
Brand: Sullins Connector Solutions
SKU: 791395
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PPPC111LFBN-RC
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HEADER FMALE 11POS .1" GOLD / Conn Socket Strip F 11 POS 2.54mm Solder ST Thru-Hole
Datasheet	PPPC111LFBN-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Sullins Connector Solutions
Packaging	Bulk
Connector Type	Header
Contact Type	Female Socket
Style	Board to Board
Number of Positions	11
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.126" (3.20mm)
Operating Temperature Range	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Current Rating	3A
Voltage Rating	250V
Insulation Material	Polyester
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	Flash
Win Source Part Number	791395-PPPC111LFBN-RC
Popularity	Medium
Supply and Demand Status	Limited
Family Name	PP
Introduction Date	March 31, 2004
ECCN	EAR99
Country of Origin	Taiwan
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian PPPC111LFBN-RC CAD Model

Description

The Sullins Connector Solutions PPPC111LFBN-RC header is a through-hole type connector manufactured by Sullins Connector Solutions.

Number of Positions: 11
Temperature Range: -40°C to 105°C
Voltage Rating: 250V
Current Rating: 3A
Pitch-Mating: 0.100" (2.54mm)
Contact Length-Post: 0.126" (3.20mm)
Contact Type: Female Socket
Positions Loaded: All
Termination: Solder
Flammability Rating: UL94 V-0
Color: Black
Popularity: Medium
