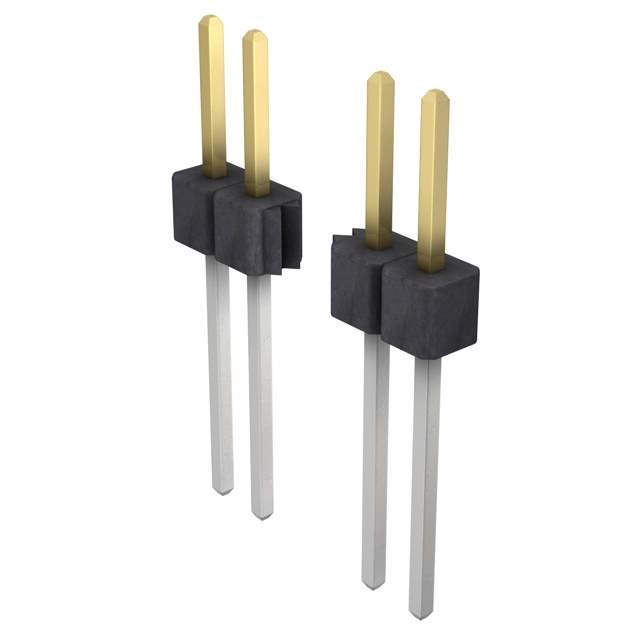

Same model may have multiple batches, images only for reference.

PBC11SACN

Name: PBC11SACN
Brand: Sullins Connector Solutions
SKU: 1229382
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PBC11SACN
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 11POS 2.54MM / Connector Header Through Hole 11 position 0.100" (2.54mm)
Datasheet	PBC11SACN Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Sullins Connector Solutions
Package	Bulk
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	11
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.320" (8.13mm)
Overall Contact Length	0.650" (16.51mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-65°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	PBC11
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	S1031E-11
Standard Package	1
Win Source Part Number	1229382-PBC11SACN
Ultra Librarian 3D Model	Ultra Librarian PBC11SACN CAD Model

Alternative Products

Description

The Sullins Connector Solutions PBC11SACN is a header connector that is ideal for board-to-board or cable connections.

Positions: 11
Pitch: 0.100" (2.54mm)
Mounting: Through Hole
Contact Finish (Mating): Gold, 10.0µin (0.25µm)
Contact Finish (Post): Tin, 100.0µin (2.54µm)
Insulation Material: Polybutylene Terephthalate (PBT)
Current Rating: 3A
Operating Temperature: -65°C ~ 125°C
Packaging: Bulk
Standard Package: 1
