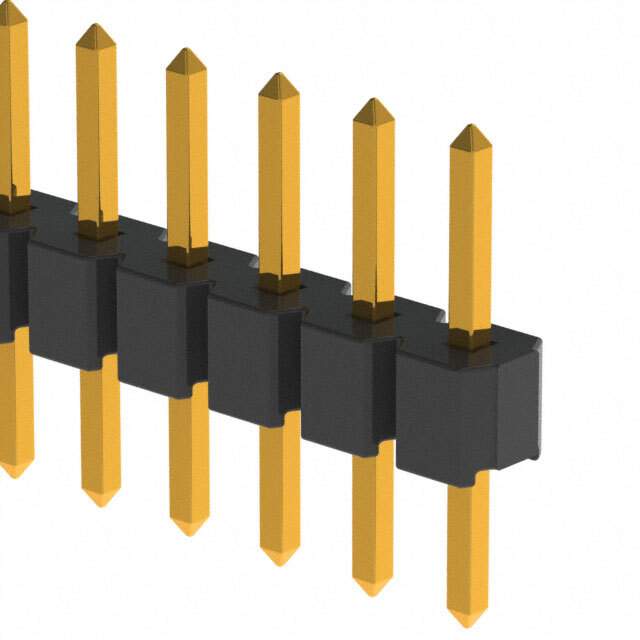

NRPN201PAEN-RC Real Image
Same model may have multiple batches, images only for reference.

NRPN201PAEN-RC

Part No NRPN201PAEN-RC
Manufacturer Sullins Connector Solutions
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 2MM / Connector Header Through Hole 20 position 0.079" (2.00mm)
Datasheet
NRPN201PAEN-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Sullins Connector Solutions
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 20
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.141" (3.60mm)
Contact Length - Post 0.110" (2.79mm)
Overall Contact Length 0.331" (8.40mm)
Insulation Height 0.079" (2.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Finish - Post Gold
Contact Material Brass
Insulation Material Polyamide (PA6T) , Nylon 6T
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2A
Voltage Rating 150V
Contact Finish Thickness - Post Flash
Base Product Number NRPN201
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340225-NRPN201PAEN-RC
Ultra Librarian 3D Model Ultra Librarian NRPN201PAEN-RC CAD Model

Description

The NRPN201PAEN-RC is a 20-position male pin header connector with a pitch of 0.079" (2.00mm) that is suitable for board-to-board or cable style applications.

  • Voltage Rating: 150V
  • Current Rating: 2A
  • Contact Finish: gold
  • Contact Finish Thickness: flash
  • Package: bulk
  • Insulation Material: Polyamide (PA6T) and Nylon 6T
  • Mounting Type: through-hole
  • Shrouding: unshrouded
  • Operating Temperature Range: -40°C ~ 105°C
  • REACH Status: unaffected
  • Manufacturer: Sullins Connector Solutions
