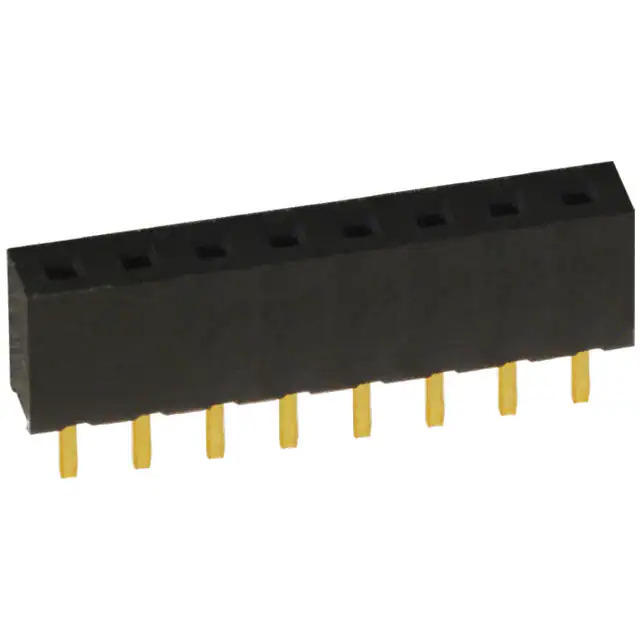

Same model may have multiple batches, images only for reference.

NPPN081BFCN-RC

Name: NPPN081BFCN-RC
Brand: Sullins Connector Solutions
SKU: 1379354
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NPPN081BFCN-RC
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HDR 8POS 0.079 GOLD PCB
Datasheet	NPPN081BFCN-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Sullins Connector Solutions
Series	-
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Female Socket
Style	Board to Board
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	1
Row Spacing - Mating	-
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Color	Black
Insulation Height	0.173" (4.40mm)
Contact Length - Post	0.094" (2.40mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Mated Stacking Heights	-
Ingress Protection	-
Features	-
Current Rating (Amps)	2A
Voltage Rating	-
Applications	-
Insulation Material	Polyamide (PA6T), Nylon 6T
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	Flash
Base Product Number	NPPN081
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1379354-NPPN081BFCN-RC
Ultra Librarian 3D Model	Ultra Librarian NPPN081BFCN-RC CAD Model

Alternative Products

Description

The NPPN081BFCN-RC is a rectangular connector from Sullins Connector Solutions.

Application: Board-to-board connections
Series: NPPN081
Package: Tube
Mounting: Through-hole
Temperature Range: -40°C to 105°C
Current Rating: 2A
Positions: 8
Rows: Single
Pitch: 0.079" (2.00mm)
Termination: Solder
Fastening: Push-pull
Contact Length: 0.094" (2.40mm)
Insulation Height: 0.173" (4.40mm)
Contact Shape: Square
Contact Finish: Gold
Contact Material: Phosphor bronze
Flammability Rating: UL94 V-0
