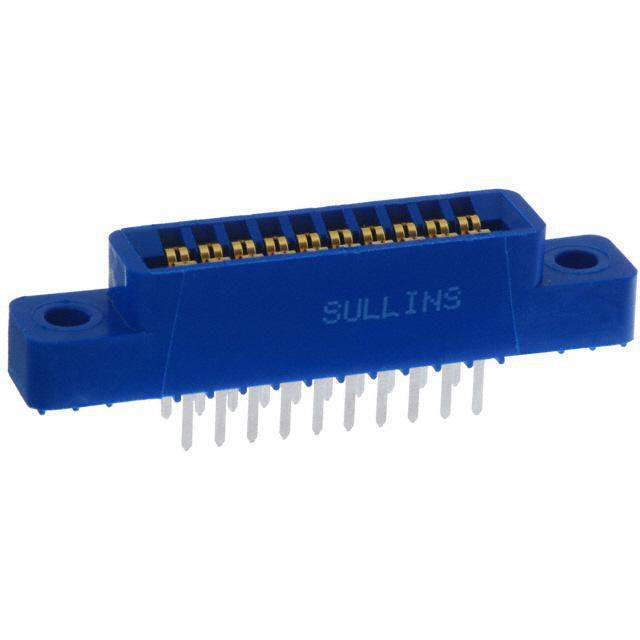

EBC10DRXH Sullins Connector Solutions
Same model may have multiple batches, images only for reference.

EBC10DRXH

Part No EBC10DRXH
Manufacturer Sullins Connector Solutions
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 20POS 0.100
Datasheet
EBC10DRXH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1197433-EBC10DRXH
Manufacturer Sullins Connector Solutions
Category Connectors, Interconnects -Card Edge Connectors -Edgeboard Connectors
Package Tray
Product Status Active
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 20
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Ultra Librarian 3D Model Ultra Librarian EBC10DRXH CAD Model

Description

The Sullins Connector Solutions 20-position dual row card edge connector is an excellent choice for your electronic projects.

  • Package Type: Tray
  • Gender: Female
  • Mounting Type: Through Hole
  • Card Type: Non-Specified Dual Edge
  • Card Thickness: 0.062" (1.57mm)
  • Positions Per Bay/Row: 10
  • Status: Active
  • Manufacturer: Sullins Connector Solutions
