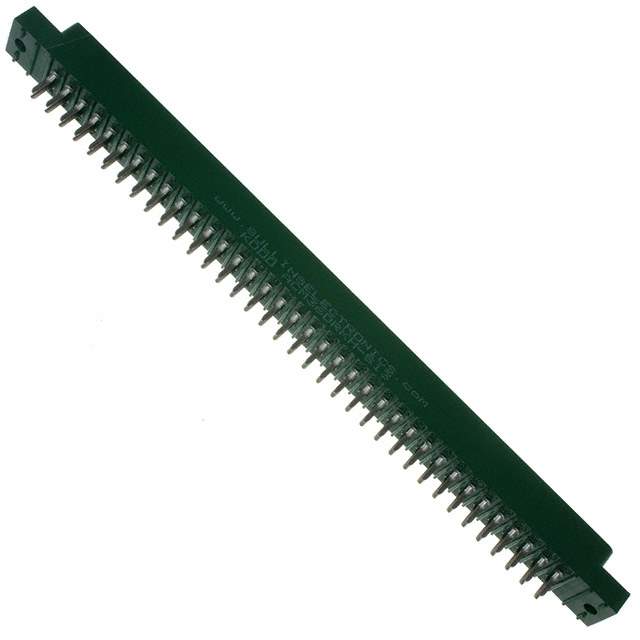

ACM36DRKH-S13 Real Image
Same model may have multiple batches, images only for reference.

ACM36DRKH-S13

Part No ACM36DRKH-S13
Manufacturer Sullins Connector Solutions
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 72POS 0.156 / 72 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
Datasheet
ACM36DRKH-S13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr Sullins Connector Solutions
Package Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 36
Number of Positions 72
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.156" (3.96mm)
Read Out Dual
Features Card Extender
Mounting Type Board Edge, Straddle Mount
Termination Solder
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Full Bellows
Color Green
Flange Feature Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Temperature Range - Operating -65°C ~ 150°C
Material - Insulation Polyphenylene Sulfide (PPS)
Base Product Number ACM36
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349478-ACM36DRKH-S13
Ultra Librarian 3D Model Ultra Librarian ACM36DRKH-S13 CAD Model

Description

The ACM36DRKH-S13 is an edgeboard connector manufactured by Sullins Connector Solutions.

  • Manufacturer: Sullins Connector Solutions
  • Product Name: ACM36DRKH-S13
  • Number of Positions: 72
  • Pitch: 0.156"
  • Card Thickness: Non-Specified
  • Card Type: Dual Edge
  • Features: Card Extender
  • Package: Tray
  • Standard Package: 1
