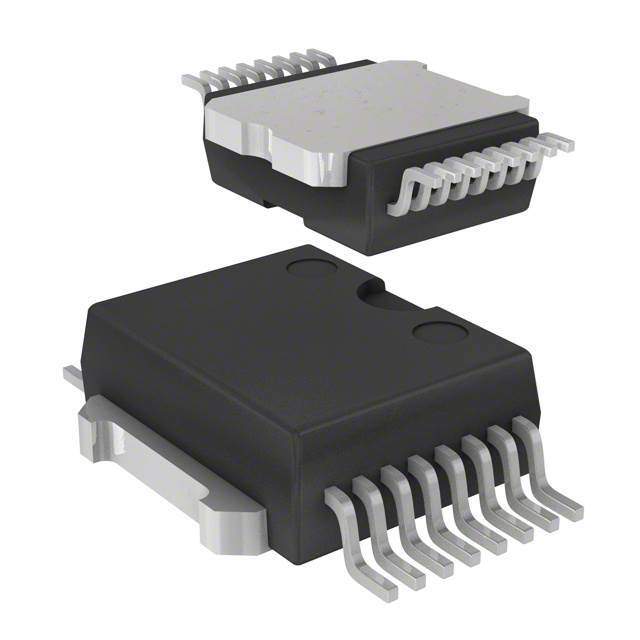

The VNQ05XSP16TR-E, from STMicroelectronics, is a high-efficiency power management integrated circuit, designed to handle a wide range of automotive applications. This robust device is a member of the VIPower M0-5 family and is specifically engineered to drive inductive, resistive, or capacitive loads with outstanding performance and reliability.

Key Features

• High Integration: The VNQ05XSP16TR-E integrates multiple functions, including a double channel high-side driver, which simplifies design and conserves space on the PCB.
• Advanced Protection: It features built-in thermal shutdown, overload protection, and short-circuit protection, ensuring the safety and longevity of both the IC and the system it controls.
• Diagnostic Functions: The device includes diagnostic features for detecting open load in OFF state, program current limitation, and over-temperature warning, which are crucial for system monitoring and troubleshooting.
• Wide Voltage Range: It operates over a wide voltage range from 5.5V to 36V, accommodating the fluctuations in automotive power supply systems.
• Low Standby Current: The low standby current consumption makes it suitable for battery-powered applications, where power efficiency is paramount.

Applications

The VNQ05XSP16TR-E is ideal for a variety of automotive applications, including but not limited to:

• Lamp driving
• DC motor control in power windows and door locks
• Control of resistive and capacitive loads

Quality and Reliability

STMicroelectronics is committed to delivering products that meet the highest standards of quality and reliability. The VNQ05XSP16TR-E is no exception, undergoing rigorous testing and qualification to ensure that it meets the stringent requirements of automotive applications.

Environmental Compliance

This product is compliant with the RoHS directive, which restricts the use of certain hazardous substances in electrical and electronic equipment, making it an environmentally friendly choice for manufacturers looking to minimize the ecological impact of their products.
