The VNI4140KTR-32 from STMicroelectronics is a high-side driver integrated circuit designed for driving resistive, inductive, and capacitive loads. This versatile quad channel device is particularly suitable for applications that require high current and high voltage operation, as well as those that need efficient power management.

Key Features

• Quad Channel Output: The device comprises four independent high-side drivers, enabling control over multiple outputs with a single IC.
• High Voltage Capability: With an operating voltage range up to 36V, it can easily handle automotive and industrial voltage requirements.
• Output Current: Each channel can deliver up to 1.1A of continuous current, making it suitable for driving a wide range of loads.
• Thermal Shutdown: An in-built thermal shutdown feature protects the device from overheating, ensuring reliability and safety in operation.
• Current Limitation: Each channel has its own current limitation, which prevents damage to the IC and the load in case of a short circuit or excessive power draw.
• Diagnostic Functions: Integrated diagnostic capabilities provide feedback on the status of each channel, which can be used for fault detection and system monitoring.

Applications

The VNI4140KTR-32 is ideal for a variety of applications, including but not limited to:

• Automotive systems such as lights, motors, and fans
• Industrial controls
• Programmable logic controllers (PLCs)
• Home automation systems

Quality and Reliability

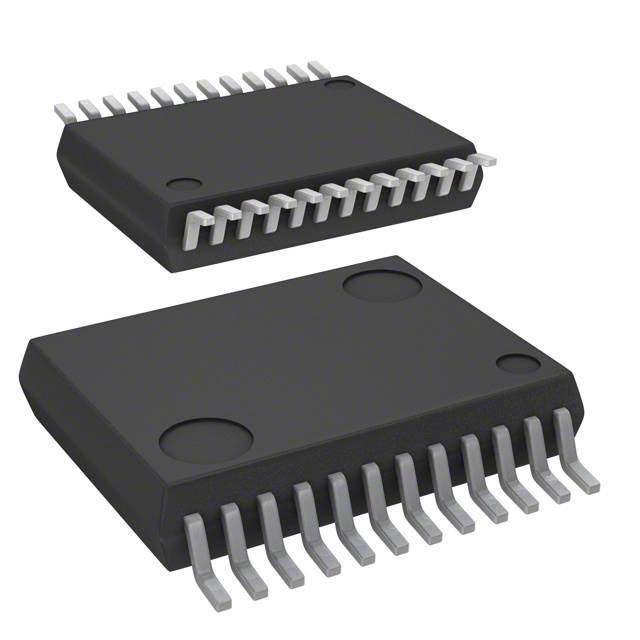

STMicroelectronics is known for its commitment to quality, and the VNI4140KTR-32 is no exception. It is designed to meet the stringent requirements of automotive and industrial applications, ensuring long-term reliability. The device is housed in a PowerSSO-36 package, which offers excellent thermal performance and space efficiency on the PCB.

Summary

The VNI4140KTR-32 is a robust, versatile high-side driver that offers a combination of high current capability, high voltage operation, and advanced protection features. Whether for automotive, industrial, or home automation, this integrated circuit provides a compact, reliable solution for driving a wide array of loads with precision and control.
