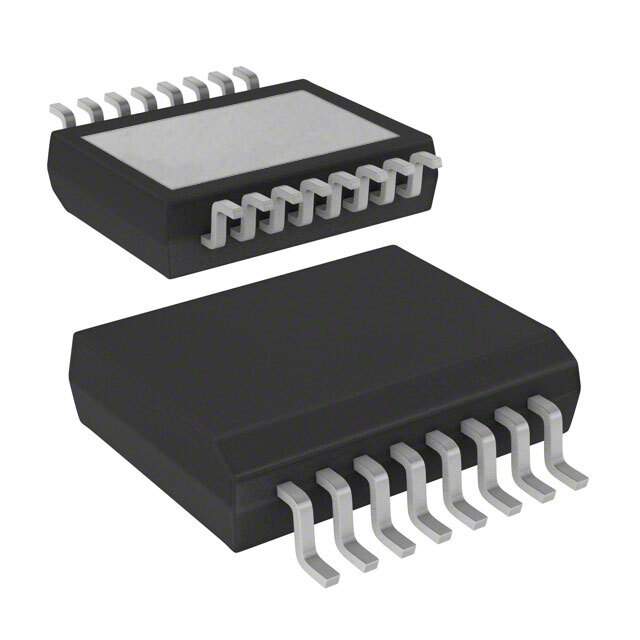

Introducing the VND7020AJTR from STMicroelectronics

The VND7020AJTR is a cutting-edge double channel high-side driver manufactured by STMicroelectronics, a leader in the semiconductor industry. This robust component is designed to drive resistive, inductive, and capacitive loads, making it a versatile choice for automotive and industrial applications. With its advanced technology and features, the VND7020AJTR ensures efficient and reliable operation in various demanding environments.

Key Features

• High-Side Switch: The VND7020AJTR operates as a high-side switch, allowing for direct control of the load from the supply voltage. This configuration is particularly useful for automotive applications where grounding loads can be problematic due to the vehicle's chassis serving as the ground plane.
• Dual Channel: Equipped with two independent channels, the device can control two separate loads, providing flexibility in design and reducing the number of components required in a system.
• Current Limitation: Each channel of the VND7020AJTR features active current limitation to protect against overcurrent conditions, enhancing the safety and longevity of the system.
• Thermal Shutdown: The built-in thermal shutdown protection prevents damage from overheating, ensuring the device operates within safe temperature ranges.
• Integrated Diagnostics: Diagnostic features are included to provide feedback on the status of the device and the system, such as load current sensing and open load detection in the off-state.
• Compliance with Automotive Standards: The VND7020AJTR is designed to meet the stringent requirements of the automotive industry, offering compliance with standards such as ISO 26262 for functional safety.

Applications

The VND7020AJTR is ideal for a wide range of applications, particularly in the automotive sector where it can be used for controlling lights, motors, heaters, and other actuators. Its robustness also makes it suitable for industrial automation systems, where reliability and precision are paramount.

With its combination of dual-channel operation, built-in protection features, and diagnostic capabilities, the VND7020AJTR from STMicroelectronics represents a smart choice for designers seeking a high-performance, high-side driver solution. Whether for vehicles or sophisticated industrial equipment, this device is engineered to deliver top-notch performance and reliability.
