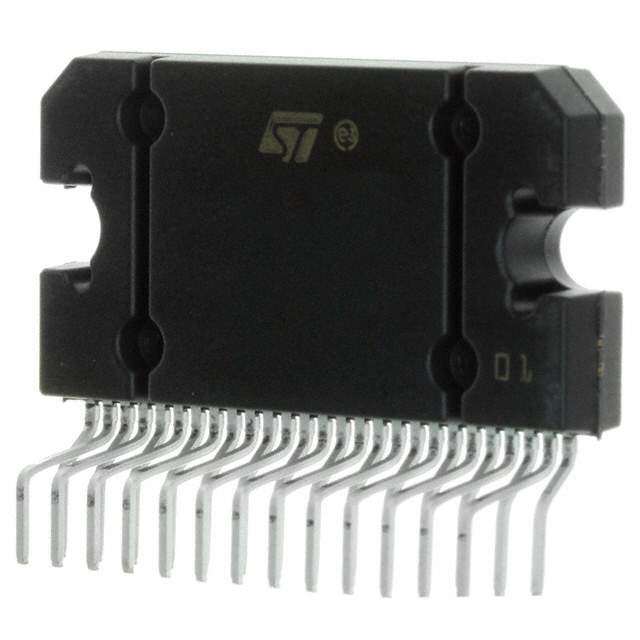

STMicroelectronics TDA7560A - 4 x 45W Quad Bridge Car Radio Amplifier

The TDA7560A from STMicroelectronics is a powerful audio amplifier designed for high-quality car radio systems. It is a part of the MULTIWATT package line and is known for its exceptional performance and reliability. The TDA7560A integrates a quad bridge amplifier capable of delivering 4 x 45W of continuous RMS output power, making it an excellent choice for automotive audio applications where clear and robust sound is a must.

This advanced amplifier features a low distortion, low output noise, and a high current capability, which allows it to drive speakers directly. With its flexible design, the TDA7560A can be used in a variety of configurations, including single-ended or bridge-tied loads (BTL), providing designers with a versatile solution for car radio systems.

Key features of the TDA7560A include a mute/stand-by function, which allows for quiet turn-on and turn-off transitions, reducing pops and clicks that can occur with power cycling. Additionally, the device comes with built-in short-circuit protection and thermal overload protection, ensuring the safety and longevity of the amplifier and the overall audio system.

The TDA7560A is also equipped with a clip detector feature, which, together with the Stand-by and Mute functions, enable a significant reduction in system costs by simplifying the rear-end design. The clip detector simplifies gain compression operations, which is essential for speakers' protection and to avoid unpleasant distortion effects.

Designed with the end-user in mind, the TDA7560A offers a MOSFET output power stage, which provides high-quality sound reproduction with reduced power dissipation, leading to less heat generation and extended operational life. Its high efficiency also ensures reduced power consumption, making it an environmentally friendly choice for modern car radios.

Overall, the TDA7560A is a robust, feature-rich audio amplifier that delivers outstanding audio performance for car radio enthusiasts and is a testament to STMicroelectronics' commitment to providing high-quality audio solutions for the automotive industry.
