STMicroelectronics TDA7381 Integrated Circuit

The TDA7381 from STMicroelectronics is a robust automotive-grade audio amplifier designed for high-quality sound applications. This 4x25W quad bridge car radio amplifier is a remarkable solution for modern car audio systems, offering an impressive balance of power and performance in a compact package.

Built with BCD (Bipolar CMOS DMOS) technology, this state-of-the-art integrated circuit ensures high efficiency, with a low distortion rate that makes it ideal for in-car entertainment. The TDA7381 is capable of delivering 4x25 watts into 4 ohms at 14.4V supply voltage, which makes it a powerful choice for driving speakers directly.

The device includes a range of features that make it a versatile and user-friendly option for car audio system designers. It has a standby function, mute function, and is designed with a minimized pop during turn-on and turn-off, which enhances the user experience by eliminating unwanted noise. The amplifier also possesses a thermal shutdown feature, which protects it from overheating, ensuring reliability and longevity.

The TDA7381's flexible design allows it to be used in a variety of configurations, including single-ended or bridge-tied load (BTL), giving designers the freedom to create systems that meet specific audio quality and power requirements. The IC also includes a clip detector, which is instrumental in preventing speaker damage due to overdriving.

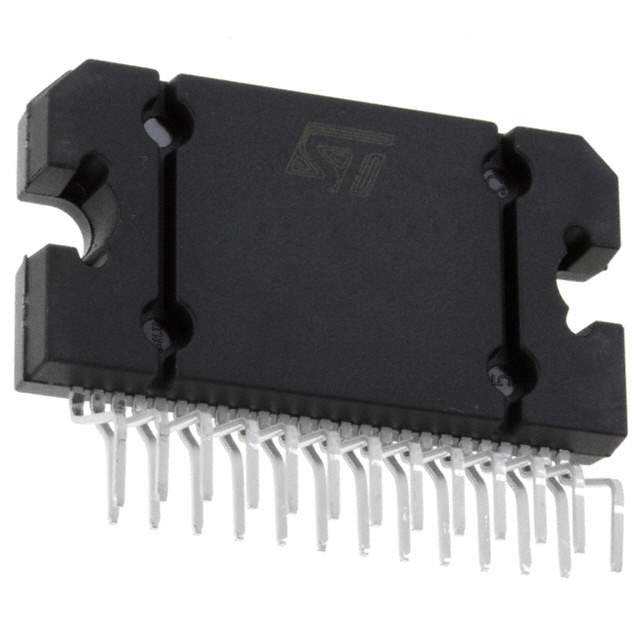

Installation and integration of the TDA7381 are streamlined due to its MULTIWATT15 package, which is designed to be easily mounted onto a printed circuit board. This, combined with the need for minimal external components, makes the TDA7381 a cost-effective and space-saving solution for automotive audio applications.

In summary, the TDA7381 from STMicroelectronics is a high-performance audio amplifier that offers both power and precision, making it an excellent choice for automotive manufacturers and aftermarket audio system designers who seek to enhance the in-car audio experience.
