The STWD100NPWY3F is a highly reliable watchdog timer integrated circuit designed by STMicroelectronics, a leader in the semiconductor industry. This compact and efficient IC is specifically engineered to monitor and reset microcontroller units (MCUs) and other digital systems, ensuring they continue to operate correctly without any manual intervention. The STWD100NPWY3F is an essential component for applications where continuous system operation is critical, such as in automotive, industrial, and consumer electronics.

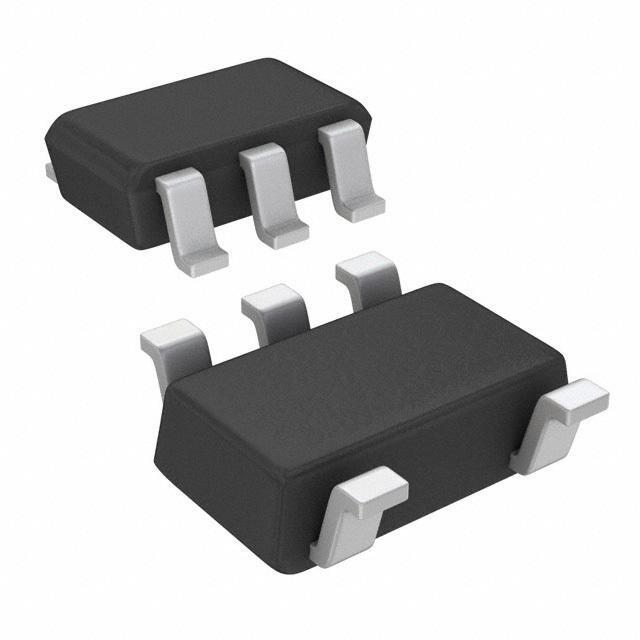

With its tiny 5-pin SOT23-5 package, the STWD100NPWY3F offers a minimal footprint, making it an excellent choice for space-constrained applications. The device operates over a wide voltage range of 2.5V to 5.5V, providing designers with the flexibility to use it in various power environments. This versatile IC also features an adjustable watchdog timeout period that can be set by an external capacitor, allowing for customization to specific system requirements.

The STWD100NPWY3F ensures system reliability through its robust set of features. It includes an open-drain, active-low watchdog output (WDO) that interfaces directly with the reset pin of the target MCU. In the event of a system malfunction, such as a software lock-up or a failure in the MCU, the watchdog timer will expire, and the WDO pin will assert a reset signal to reboot the system automatically. This helps to prevent system hangs and enables a quick recovery from fault conditions.

Additionally, the device boasts a low power consumption, making it suitable for battery-powered applications where power efficiency is paramount. The STWD100NPWY3F also provides a chip enable pin (CE), which can be used to disable the watchdog timer, allowing for reduced power consumption during standby periods or when the watchdog function is not required.

In summary, the STWD100NPWY3F from STMicroelectronics is a reliable and versatile watchdog timer IC that offers an adjustable timeout period, low power consumption, and a small package size. It is a crucial component for enhancing system stability and reliability in a wide range of electronic applications.
