Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 300V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 1.25V @ 40A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 60ns
Current - Reverse Leakage @ Vr 80μA @ 300V
Operating Temperature - Junction 175°C (Max)
Mounting Through Hole

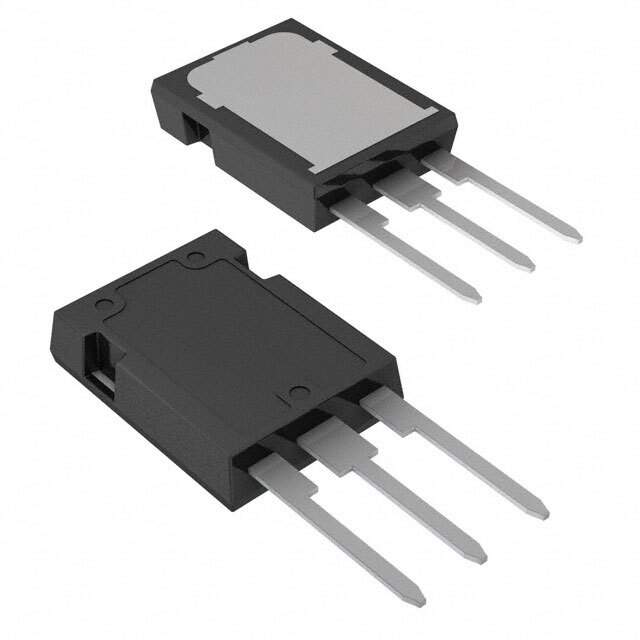

Case / Package MAX247
Win Source Part Number 038172-STTH8003CY
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 30
Ultra Librarian 3D Model Ultra Librarian STTH8003CY CAD Model

Description

STTH8003CY - Ultrafast High Voltage Rectifier

The STTH8003CY from STMicroelectronics is a state-of-the-art ultrafast high voltage rectifier specifically designed for use in switching power supplies, inverters, and as freewheeling diodes. This high-performance component is ideal for applications requiring efficient and reliable power conversion.

Key Features

  • High Reverse Voltage Capability: With a reverse voltage of up to 300V, the STTH8003CY is capable of handling high stress conditions in power circuits.
  • Ultrafast Switching: The device boasts an exceptionally fast reverse recovery time, significantly reducing switching losses and improving overall efficiency.
  • Low Forward Voltage Drop: Its low forward voltage drop ensures minimal power dissipation during conduction, contributing to the overall energy efficiency of the system.
  • Robust Design: The rectifier is designed to withstand harsh conditions, making it suitable for industrial and automotive applications that demand high reliability.

Applications

The versatility of the STTH8003CY allows it to be used in a wide range of applications including:

  • Switch-mode power supplies (SMPS)
  • Power factor correction circuits
  • Snubber circuits
  • High-frequency inverters
  • DC/DC converters

Technical Specifications

Parameter Value Package TO-247 Average Forward Current (If(AV)) 80 A Reverse Voltage (Vr) 300 V Forward Voltage Drop (Vf) 1.3 V @ 40 A Reverse Recovery Time (trr) 35 ns

With its exceptional performance and robustness, the STTH8003CY is a superior choice for designers looking to enhance the efficiency and reliability of their power management systems.
