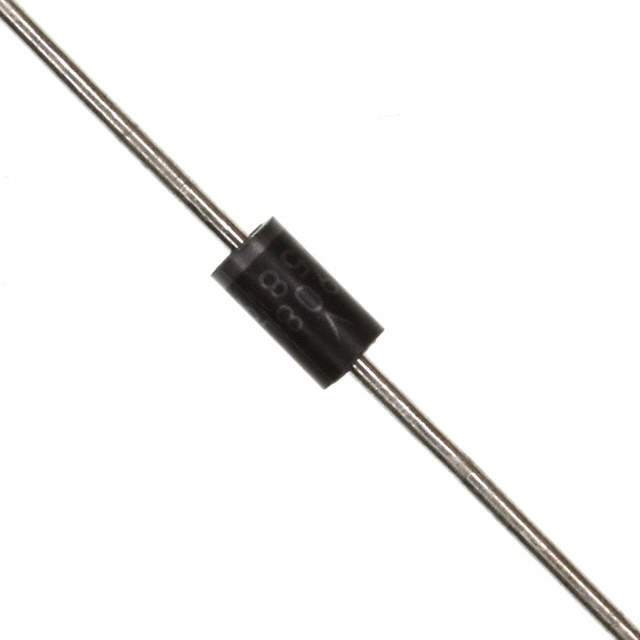

The STTH102, by STMicroelectronics, is a high-efficiency ultrafast diode designed to meet the rigorous demands of modern electronic applications. This component is specifically engineered to offer a combination of low forward voltage drop and rapid reverse recovery time, making it an ideal choice for high-frequency rectification and freewheeling operations in power supplies and other power switching applications.

Key Features

• Low Forward Voltage Drop (Vf): The STTH102 boasts a low forward voltage drop, which enhances overall system efficiency by reducing conduction losses.
• Ultrafast Reverse Recovery Time (trr): With its quick reverse recovery time, the STTH102 minimizes switching losses and is suitable for high-frequency operation.
• High Surge Current Capability: This diode is capable of handling high surge currents, making it robust against sudden overloads.
• High Junction Temperature: The STTH102 can operate at high temperatures, maintaining performance even under thermal stress.

Applications

The versatility of the STTH102 allows it to be used in a variety of applications, including:

• Switch-mode power supplies (SMPS)
• Power factor correction circuits (PFC)
• Snubber circuits
• Free-wheeling diodes in converters and motor control circuits
• Automotive applications requiring high reliability

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The STTH102 is manufactured with robust materials and is subjected to rigorous testing to ensure high reliability and performance consistency. This diode is compliant with industry standards, ensuring it can be integrated into various designs with confidence.

Ordering Information

To order or obtain more information about the STTH102, visit the STMicroelectronics website or contact an authorized distributor. The diode is available in various packages and quantities to suit diverse design and production requirements.
