The STPS6045CPIRG is a state-of-the-art power Schottky rectifier designed and manufactured by STMicroelectronics, a leader in semiconductor solutions. This component is specifically engineered to combine low voltage drop with very low leakage current, making it an ideal choice for high-efficiency power management applications.

Key Features

• Voltage Rating: The rectifier has a repetitive peak reverse voltage (VRRM) of 45V, which makes it suitable for a wide range of low voltage applications.
• Forward Current: It boasts a high average forward current (IF(AV)) of 60A, ensuring its capability to handle high current requirements with ease.
• Low Power Loss: With its Schottky barrier technology, the STPS6045CPIRG ensures low forward voltage drop (VF), which translates to reduced power loss and improved efficiency.
• High Junction Temperature: The device operates at a junction temperature range from -40°C to +175°C, allowing for reliable performance in extreme conditions.

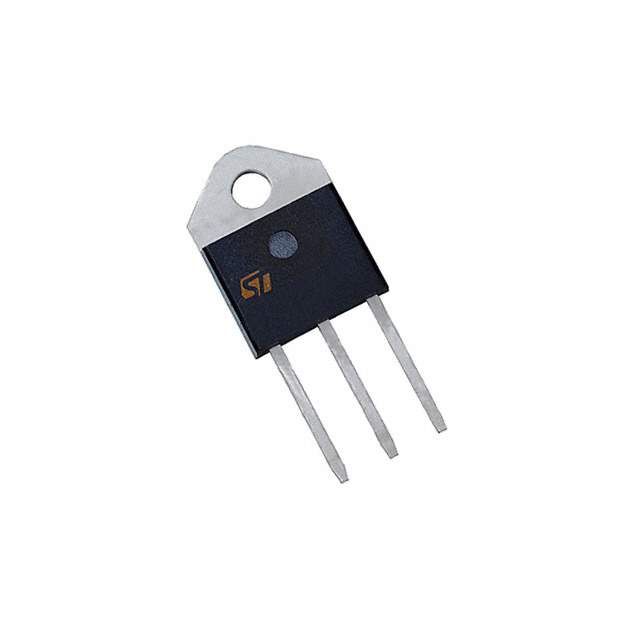

• Package: The rectifier comes in a TO-247 package, known for its excellent thermal performance and mechanical durability.

Applications

The STPS6045CPIRG is versatile and can be used in a variety of applications, including:

• Switch-mode power supplies (SMPS)
• DC-DC converters
• Free-wheeling diodes in motor control circuits
• Power factor correction (PFC) circuits
• Automotive applications requiring high reliability

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The STPS6045CPIRG is no exception, meeting stringent industry standards for reliability and performance. It is RoHS compliant and manufactured with the environment in mind, ensuring both ecological responsibility and reduced hazardous waste.

Conclusion

The STPS6045CPIRG from STMicroelectronics represents a blend of advanced semiconductor technology with robust design, making it an excellent choice for engineers looking to optimize power efficiency and reliability in their electronic designs.
