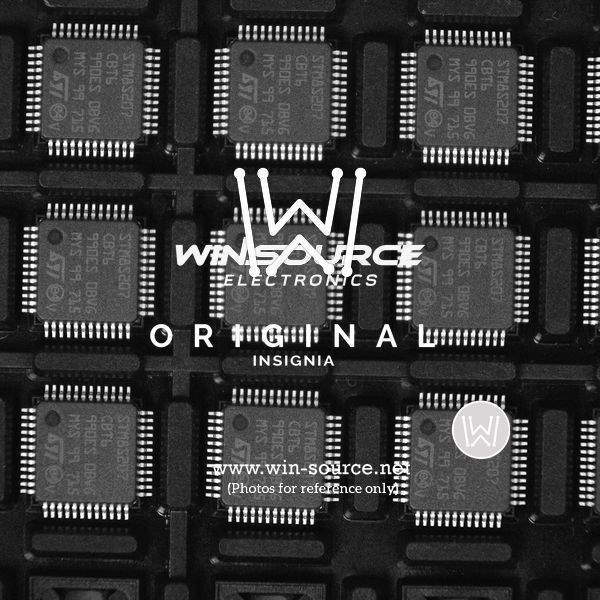

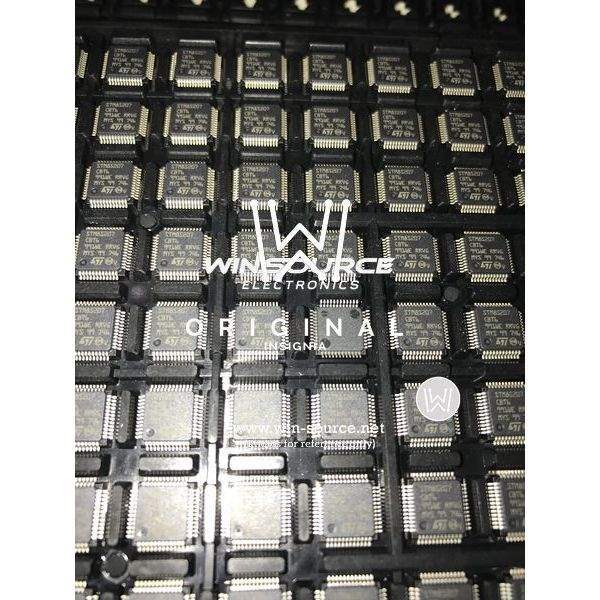

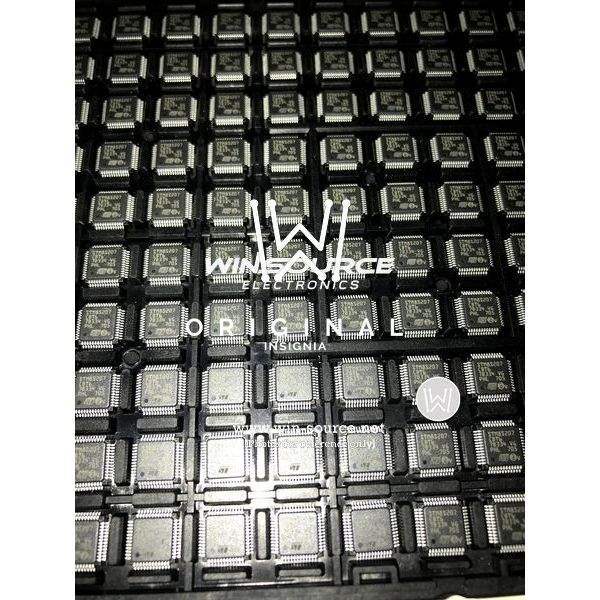

STM8S207CBT6 Microcontroller - STMicroelectronics

The STM8S207CBT6 is a high-performance microcontroller from STMicroelectronics that belongs to the STM8S family, which is designed to deliver an optimal balance between performance, robustness, and cost-effectiveness. This 8-bit microcontroller is based on the advanced STM8 core operating at a frequency of up to 24 MHz and is well-suited for a variety of applications ranging from industrial control systems to consumer electronics.

Key Features

• Core: STM8 core running at up to 24 MHz clock frequency.
• Memory: 128 KB of Flash program memory with read-while-write support, 2 KB of RAM, and 1 KB of EEPROM.
• Digital Peripherals: Integrated clock control, watchdog, and brown-out reset.
• Timers: Three 16-bit timers, each with 4 independent channels, providing a range of functions including PWM, pulse counting, and timekeeping.
• Communication Interfaces: Offers a rich set of communication interfaces including I2C, SPI, UART, and CAN bus interface for versatile connectivity.
• Analog Features: Has 10-bit ADC with up to 16 channels, allowing for accurate analog signal acquisition.
• Package: Delivered in a 48-pin LQFP package that is well-suited for space-constrained applications.

Applications

The STM8S207CBT6 is designed for a wide range of applications, including:

• Automotive and transportation systems.
• Industrial controls and automation.
• Smart home devices and building automation.
• Consumer electronics and personal gadgets.
• Medical devices and healthcare products.

Development Support

STMicroelectronics provides comprehensive development support for the STM8S207CBT6 with software libraries, development kits, and the ST Visual Develop (STVD) Integrated Development Environment (IDE) for writing, debugging, and deploying applications on the STM8S platform.

Conclusion

With its robust architecture, extensive feature set, and supportive ecosystem, the STM8S207CBT6 microcontroller is an excellent choice for engineers and developers looking to create sophisticated and reliable products across a diverse array of market segments.
