The STM8S001J3M3TR is a high-performance microcontroller from STMicroelectronics designed for budget-conscious and space-constrained applications. This device is part of the STM8S series, which is renowned for its robust architecture and ease of use. With an advanced STM8 core operating at up to 16 MHz, this microcontroller offers a blend of performance and efficiency that is ideal for a wide range of applications, including industrial control, consumer electronics, and automotive systems.

Key Features

• Core: STM8 8-bit core, with up to 16 MHz clock frequency.
• Memory: 8 KB Flash memory, 1 KB RAM, 128 bytes of EEPROM.
• I/O Pins: 5 multifunctional I/O pins that support various configurations, including UART, SPI, and I2C communication protocols.
• Supply Voltage: Wide operating voltage range from 3.3 V to 5.5 V.
• Timers: Advanced control timer, two general-purpose timers, and a watchdog timer.
• Temperature Range: Industrial temperature range from -40°C to +85°C.

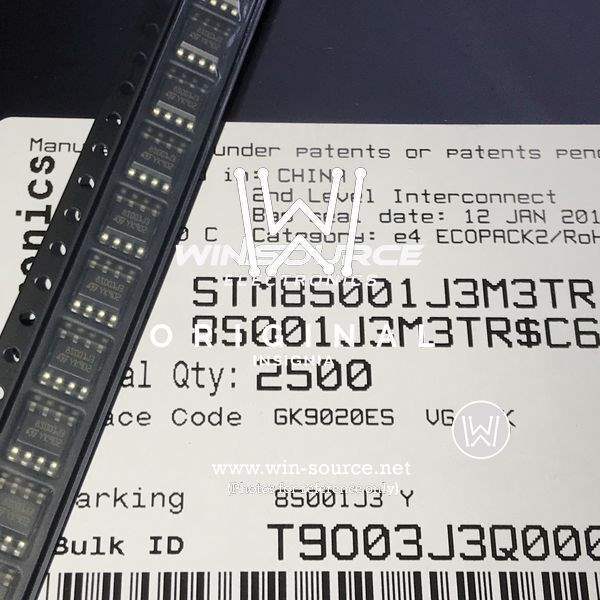

• Package: Available in a space-saving SO-8 package, ideal for small form-factor designs.

Advantages

The STM8S001J3M3TR offers a unique combination of features that make it particularly appealing for designers. The integration of a robust core with essential peripherals and memory in a small package reduces the complexity of the circuit and the overall bill of materials. Its wide operating voltage range and temperature stability ensure reliable operation in varying environmental conditions. Additionally, the support for multiple communication protocols provides designers with flexibility in interfacing with other components.

Applications

The versatility of the STM8S001J3M3TR allows it to be used in a diverse array of applications. It is well-suited for:

• Smart sensors and actuators
• Home and building automation
• Lighting systems
• Battery management
• Personal electronics
• Automotive subsystems

With its robust feature set and compact design, the STM8S001J3M3TR microcontroller from STMicroelectronics is an excellent choice for developers looking to maximize functionality while minimizing space and cost.
