STM32L151VDT6TR - Ultra-low-power ARM Cortex-M3 MCU

The STM32L151VDT6TR is a cutting-edge microcontroller product from STMicroelectronics, designed to deliver high performance and energy efficiency for a wide range of applications. This microcontroller is part of the STM32 L1 series, which is renowned for its ultra-low-power consumption, making it an ideal choice for battery-operated devices, energy-harvesting systems, and smart sensors.

The STM32L151VDT6TR is based on the ARM Cortex-M3 processor, which operates at a frequency of up to 32 MHz. This processor core is known for its exceptional balance of power and performance, featuring a 3-stage pipeline, hardware division, and support for multiple block data transfers. The microcontroller incorporates 384 KB of flash memory and 48 KB of RAM, providing ample space for complex applications and data storage.

One of the standout features of this MCU is its rich set of peripherals. It includes a 12-bit analog-to-digital converter (ADC) with up to 24 channels, allowing for precise analog signal measurement. The device also offers multiple communication interfaces, such as I2C, SPI, USART, and USB 2.0 Full Speed, facilitating versatile connectivity options for various peripheral devices.

The STM32L151VDT6TR boasts several power-saving modes, which include low-power run, sleep, low-power sleep, and stop modes, as well as a standby mode with ultra-low power consumption. These modes, along with a dynamic voltage scaling option, ensure that the microcontroller can achieve a perfect balance between processing power and energy efficiency, extending the battery life of portable devices.

Furthermore, this microcontroller features an integrated LCD driver, which supports up to 8x40 or 4x44 segments, enabling the creation of intuitive user interfaces for handheld devices. Safety and reliability are also enhanced with built-in hardware support for real-time clock (RTC), independent watchdog, and a software watchdog.

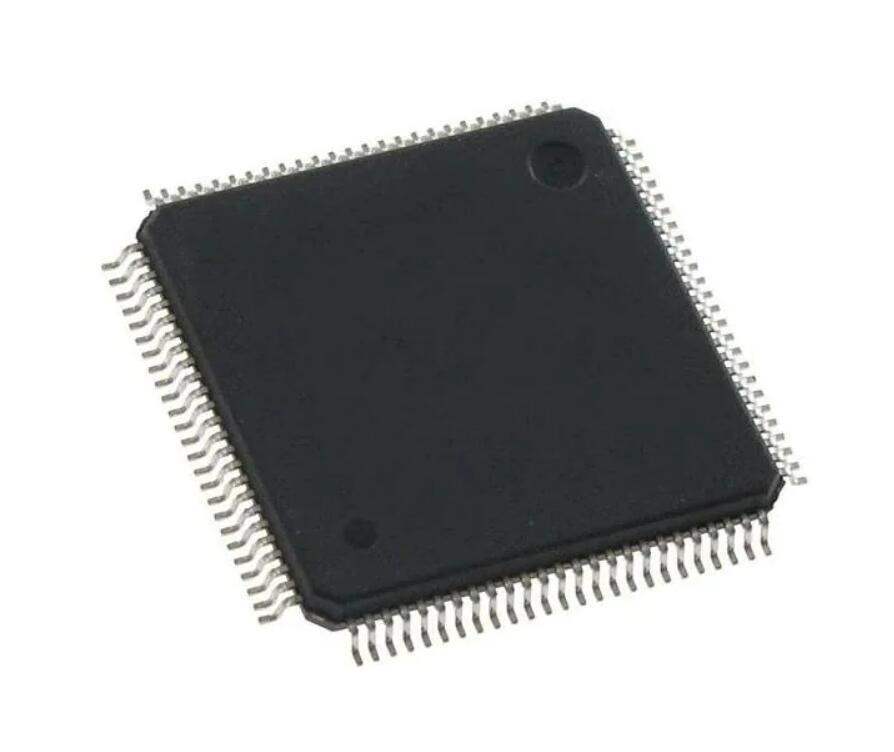

With its LQFP100 package, the STM32L151VDT6TR is designed for ease of integration into various PCB designs. It is fully supported by STMicroelectronics' comprehensive development ecosystem, which includes software libraries, development boards, and debugging tools, simplifying the development process and reducing time to market.

In summary, the STM32L151VDT6TR from STMicroelectronics is a powerful and versatile microcontroller that provides an optimal solution for designers looking to create energy-efficient and performance-oriented embedded systems.
