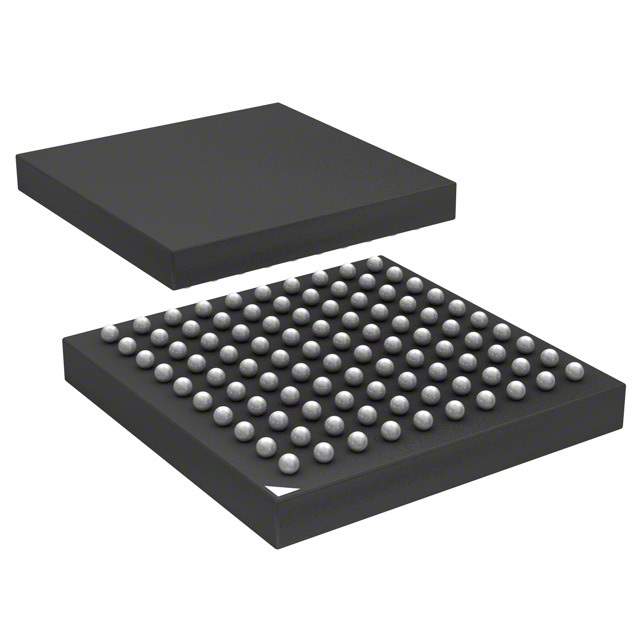

STM32F103VBH6 Microcontroller

The STM32F103VBH6 is a high-performance ARM Cortex-M3 based microcontroller, designed and manufactured by STMicroelectronics. It is part of the STM32F1 series, which is renowned for its balanced combination of power efficiency, performance, and cost-effectiveness. This microcontroller is an ideal choice for a wide range of applications, including industrial control systems, medical devices, embedded systems, and consumer electronics.

Key Features

• Core: ARM 32-bit Cortex-M3 CPU, which operates at a frequency of up to 72 MHz, delivering 1.25 DMIPS/MHz (Dhrystone 2.1) performance.
• Memory: Equipped with 128 KB of Flash memory and 20 KB of SRAM, providing ample space for complex applications and software.
• I/O Ports: Offers up to 51 I/O ports with various configuration options including support for 5V tolerant I/Os.
• Connectivity: Includes a range of serial interfaces such as I2C, SPI, and USARTs, facilitating easy communication with peripherals and other microcontrollers.
• ADCs: Features two 12-bit analog-to-digital converters, providing precise measurements for analog sensors.
• Timers: Comes with multiple general-purpose and advanced-control timers that support PWM generation, and time-based functions.
• Debugging: Integrated with Serial Wire Debug (SWD) and JTAG interfaces for full access to the microcontroller for debugging.
• Power Efficiency: Offers several power-saving modes, including Sleep, Stop, and Standby modes to optimize power consumption.
• Voltage Range: Operates within a voltage range of 2.0 to 3.6V, suitable for battery-powered and low-power applications.

Applications

The versatility of the STM32F103VBH6 makes it a perfect candidate for a diverse array of applications. Its robust architecture is particularly well-suited for:

• Industrial automation and control
• Consumer electronics
• Medical devices
• Home automation and smart devices
• Automotive and transportation systems
• Complex embedded systems requiring a rich feature set and high performance

STMicroelectronics provides comprehensive support for the STM32F103VBH6, with a wide range of development tools, software libraries, and documentation to assist developers in harnessing the full potential of this microcontroller for their specific applications.
