STM32F103TBU6TR - STMicroelectronics

The STM32F103TBU6TR is a cutting-edge microcontroller unit (MCU) from STMicroelectronics, which is part of their renowned STM32 family, specifically the STM32F1 series. This product is designed to offer high-performance, low-power operation, and a wide range of peripherals, making it a versatile choice for a variety of applications, including industrial control, medical equipment, consumer electronics, and more.

Key Features:

• Core: ARM Cortex-M3 processor, which operates at a frequency of up to 72 MHz, delivering 1.25 DMIPS/MHz (Dhrystone 2.1) performance with a memory protection unit to enhance application security.
• Memory: Comes with 128 Kbytes of Flash memory and 20 Kbytes of SRAM, providing ample space for complex applications and data storage.
• I/Os: Up to 80 fast I/O ports, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant.
• Debugging: Embedded in-circuit debugging and programming via SWD (Serial Wire Debug) interface.
• Connectivity: Offers a range of connectivity options including USB 2.0 full-speed interface, CAN, and multiple serial interfaces (I2C, USART, SPI).
• Analog: Equipped with 12-bit ADCs, DACs, and multiple general-purpose and advanced-control timers for versatile control applications.
• Power Efficiency: Features three power-saving modes including Sleep, Stop, and Standby to ensure efficient power management.

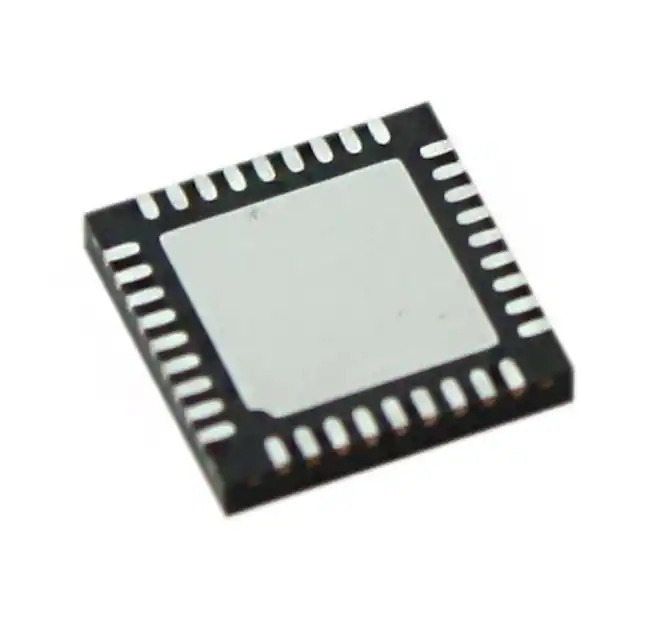

• Package: Available in a 36-pin chip-scale package, which is ideal for space-constrained applications.

Robust Design:

The STM32F103TBU6TR is designed with an emphasis on robustness, with a wide operating voltage range (2.0 V to 3.6 V) and a temperature range from -40°C to 85°C. Its built-in reset and power management circuits contribute to the MCU's reliability in demanding environments.

Software Support:

STMicroelectronics provides comprehensive software support for the STM32F103TBU6TR, including the STM32Cube software development kit, which features HAL (Hardware Abstraction Layer) and LL (Low Layer) APIs, middleware solutions, and a full set of software libraries and examples to accelerate development and time-to-market.

Environmental Compliance:

The STM32F103TBU6TR is RoHS compliant and Pb-free, minimizing the environmental impact and meeting the requirements for eco-design in electronic products.
