The STM32F101T6U6A is a high-performance microcontroller from STMicroelectronics, designed to offer an optimal balance between performance, power consumption, and cost. This member of the STM32F1 series is based on the ARM Cortex-M3 processor and is tailored for a wide range of applications including industrial control, medical equipment, and consumer electronics.
Key Features
- Core: ARM Cortex-M3, 32-bit RISC processor operating at a frequency of up to 36 MHz.
- Memory: Includes 32KB of Flash memory and 6KB of SRAM, providing ample space for complex applications and software stacks.
- I/O Ports: Comes with a rich set of I/Os and peripherals, such as USART, SPI, I2C interfaces, and 12-bit ADCs, making it highly versatile for peripheral connectivity.
- Debugging: Features integrated debugging and programming capabilities via SWD (Serial Wire Debug) and JTAG interfaces.
- Power Efficiency: Offers multiple power-saving modes, including Stop and Standby, to ensure energy efficiency for battery-powered devices.
- Operating Voltage: Operates within a range of 2.0 to 3.6 volts, suitable for low-power applications.
- Temperature Range: Designed to operate within an industrial temperature range from -40°C to +85°C, ensuring reliable performance under extreme conditions.

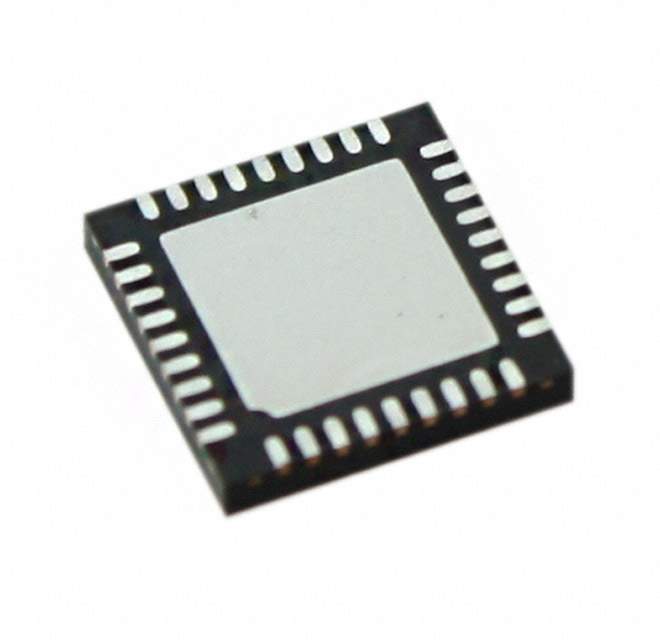

- Packages: Available in a 36-pin UFQFPN package, which is ideal for space-constrained applications.
Applications
The STM32F101T6U6A microcontroller is engineered for a variety of applications that require high computational performance and low power consumption. It is particularly well-suited for:
- Industrial automation and control systems
- Medical devices and healthcare equipment
- Smart home devices and Internet of Things (IoT) applications
- Portable consumer electronics
- Motor control systems
With its robust architecture, rich set of peripherals, and low power capabilities, the STM32F101T6U6A is an excellent choice for designers looking to develop advanced embedded systems with stringent power and space requirements.
