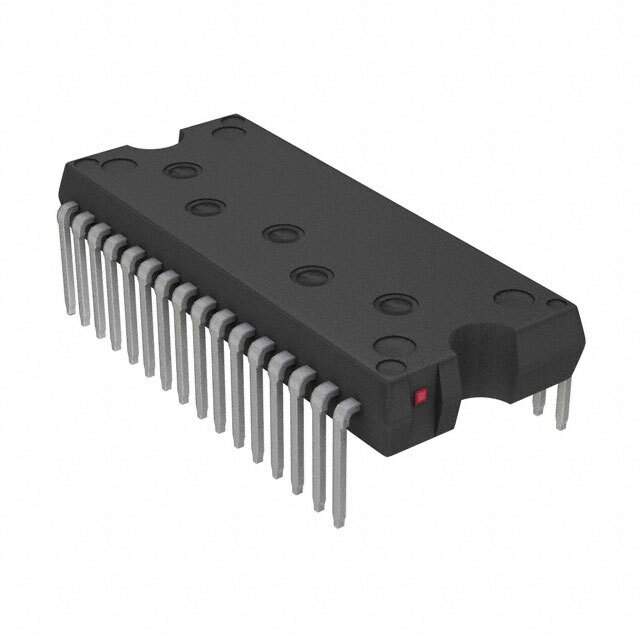

The STGIPQ5C60T-HL is a state-of-the-art Intelligent Power Module (IPM) designed and manufactured by STMicroelectronics, a global semiconductor leader. This compact and high-performance module is specifically engineered to meet the demanding requirements of advanced motor drive applications, including those found in consumer appliances, air conditioners, and industrial automation systems.

Key Features

• Integrated Design: The STGIPQ5C60T-HL integrates a three-phase inverter power stage with gate drivers and protection features in a single, compact package. This integration facilitates design simplicity and reduces the overall footprint of the power electronics system.
• High Voltage Rating: With a maximum operating voltage of 600V, this IPM is suitable for a wide range of applications that require high voltage operation, ensuring reliability and robustness in harsh electrical environments.
• Advanced Trench Gate Field-Stop IGBT: The module incorporates advanced trench gate field-stop IGBTs, providing low conduction and switching losses, which translates to improved efficiency and thermal performance in motor control applications.
• Over-Current and Over-Temperature Protection: The STGIPQ5C60T-HL features built-in over-current and over-temperature protection, enhancing system reliability and safety. These protections help to prevent damage to the module and the system it controls under fault conditions.
• Optimized for Fast Switching: The IPM is optimized for fast switching, which is essential for reducing electromagnetic interference (EMI) and increasing efficiency in variable speed drives.
• Isolated Package: The module comes in a highly insulated package that provides excellent electrical isolation, ensuring safe operation and ease of use in various application settings.

Applications

The STGIPQ5C60T-HL is versatile and can be used in a variety of applications, including but not limited to:

• Home appliances such as washing machines and refrigerators
• HVAC systems including air conditioners and heat pumps
• Industrial motor drives and pumps
• Fans and blowers in commercial and industrial settings

With its robust design, comprehensive protection features, and high efficiency, the STGIPQ5C60T-HL from STMicroelectronics represents a reliable and cost-effective solution for designers looking to optimize their motor control systems.
