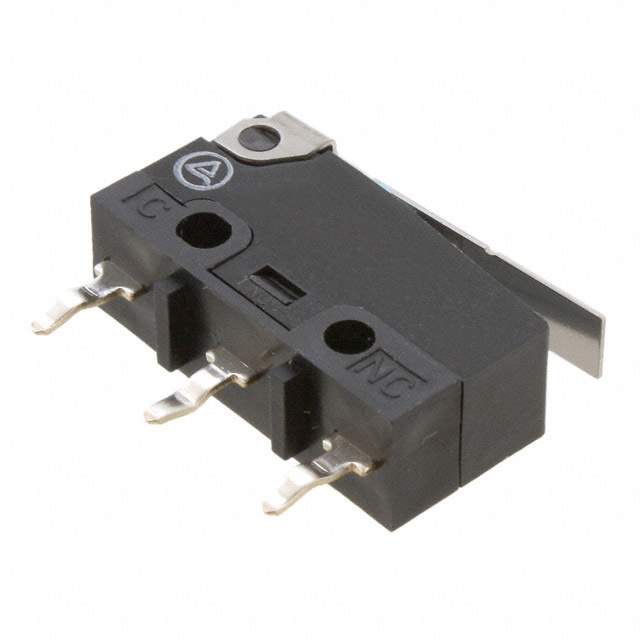

SSG-5L1P Real Image
Same model may have multiple batches, images only for reference.

SSG-5L1P

Part No SSG-5L1P
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SSG
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC), 4A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 61gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.040" (1.0mm)
Temperature Range - Operating -25°C ~ 125°C
Operating Position 0.480" (12.2mm)
Electrical Life 200,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SSG-5
Other Names SSG-5L1P BY OMZ,SSG-5L1P,SSG5L1P,SS5N6008M,SSG5L1P1,SSG5L1PBYOMZ,SW1407
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233447-SSG-5L1P
Ultra Librarian 3D Model Ultra Librarian SSG-5L1P CAD Model

Description

The Omron 1233447-SSG-5L1P is a limit switch that is designed for use in electronic applications.

  • Series: SSG series
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever, straight
  • Electrical Life: 200,000 cycles
  • Operating Force: 61gf
  • Mechanical Life: 10,000,000 cycles
  • Release Force: 6.118gf
  • Voltage: 125VAC and 30VDC
  • Ingress Protection Rating: IP40
