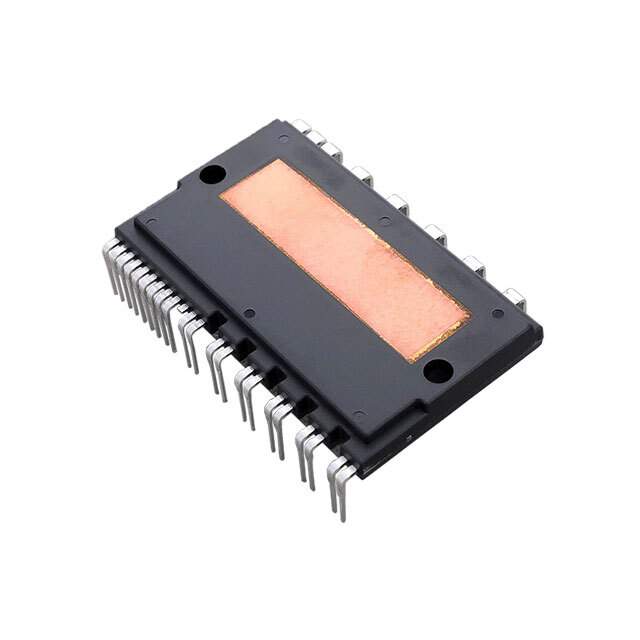

The STGIK50CH65T is a state-of-the-art power semiconductor device from STMicroelectronics, designed to deliver high efficiency and reliability for a wide range of power applications. This advanced power module integrates IGBTs (Insulated Gate Bipolar Transistors) and diodes to form a compact, high-performance solution ideal for motor drive inverters, power supplies, and general-purpose inverters.

Key Features:

• High Voltage Capability: The STGIK50CH65T is capable of handling voltages up to 650V, making it suitable for various industrial and consumer applications that require high voltage operation.
• High Current Rating: With a continuous collector current rating of 50A, this device can support applications with high power requirements, ensuring efficient power handling and distribution.
• Low On-State Voltage: The low on-state voltage drop of the IGBTs minimizes conduction losses, which enhances overall efficiency and reduces thermal stress on the system.
• Co-Packaged Freewheeling Diode: The inclusion of a fast recovery diode in the same package as the IGBT provides efficient switching performance and simplifies circuit design by reducing component count.
• High Switching Speed: The device is designed for fast switching, which is critical for reducing switching losses and improving the performance of high-frequency applications.
• Robust Thermal Management: The module is designed with an optimized thermal layout to ensure excellent heat dissipation, thereby extending the life of the device and maintaining consistent performance.
• Isolation: Electrical isolation between the mounting base and the collector is provided, enhancing safety and simplifying the use of the device in various applications.

Applications:

The STGIK50CH65T is ideal for a range of applications, including:

• AC and DC motor drives
• Uninterruptible power supplies (UPS)
• Power factor correction circuits
• Welding equipment
• Renewable energy inverters, such as solar and wind power systems

With its combination of high performance, efficiency, and reliability, the STGIK50CH65T from STMicroelectronics represents a robust solution for designers looking to optimize their power management systems.
