The STG3220QTR from STMicroelectronics is a high-performance, ultra-low power dual single-pole double-throw (SPDT) switch designed for the most demanding applications. This device is part of the STG3200 family of switches that are known for their reliability and efficiency in switching analog and digital signals.

Featuring a wide operating voltage range from 1.65V to 5.5V, the STG3220QTR is highly versatile and suitable for a variety of applications, including mobile phones, PDAs, portable media players, and other battery-powered devices where power conservation is critical. Its low power consumption, with a quiescent current of just 10nA, helps to extend battery life in portable applications.

The STG3220QTR offers an excellent performance with a high bandwidth of up to 300 MHz, making it ideal for high-speed data streaming and signal routing. Its low on-state resistance (typically 5Ω) ensures minimal signal attenuation, which is crucial for maintaining signal integrity in critical paths.

With its ESD protection of up to 4 kV (HBM), the STG3220QTR safeguards sensitive components from electrostatic discharges, providing enhanced reliability and durability for the end product. The switch is also characterized by its break-before-make switching operation, which prevents signal cross-talk during state transitions.

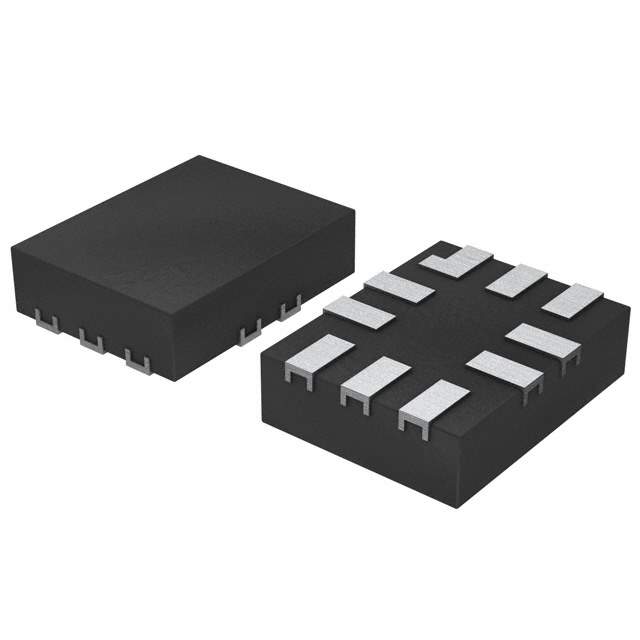

The STG3220QTR is available in a compact QFN-10L 1.8x1.4 package, which is ideal for space-constrained applications. Its small footprint allows for high-density integration in PCB designs, providing designers with more freedom and flexibility in their layout considerations.

Overall, the STG3220QTR is an excellent choice for designers looking for a high-performance, low-power SPDT switch that does not compromise on signal quality or power efficiency. With its robust feature set and compact design, it stands out as a leading solution in the market for switching applications.
