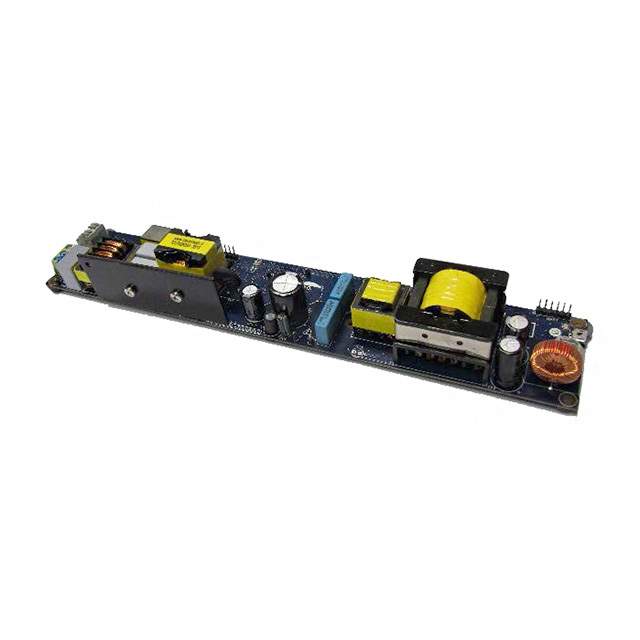

STEVAL-ILL066V2 - LED Array Driver Evaluation Board by STMicroelectronics

The STEVAL-ILL066V2 is a sophisticated evaluation board from STMicroelectronics designed specifically for driving LED arrays. This board is based on the advanced LED6001 chip, which is a monolithic, step-down, current-mode PWM driver with an integrated MOSFET, ideally suited for driving high-brightness LEDs.

With a wide input voltage range from 4.5V to 61V, the STEVAL-ILL066V2 is flexible enough to accommodate various power supplies, making it a versatile solution for a range of LED lighting applications. It is capable of delivering up to 3A of continuous current to the LED load, ensuring bright and consistent lighting performance.

The board comes with a number of features that make it highly adaptable and easy to use:

• Adjustable Output Current: Users can set the LED current to the desired level, which allows for fine-tuning of the light intensity and ensures compatibility with different LED configurations.
• Dimming Control: The STEVAL-ILL066V2 supports both analog and PWM dimming, providing users with precise control over the brightness of the LEDs.
• Thermal Protection: The board is equipped with thermal shutdown protection, which helps to prevent overheating and extends the life of the LEDs.
• Open LED Detection: The LED6001 driver includes an open LED detection feature, which alerts the user to any breaks in the LED array, ensuring safe and reliable operation.
• Flexibility: The evaluation board can be used in a stand-alone mode or connected to a microcontroller for more advanced control and monitoring.

Designed for a wide array of lighting applications, the STEVAL-ILL066V2 is ideal for architectural lighting, signage, street lighting, and emergency lighting, among others. Its robust design and comprehensive feature set make it an excellent choice for developers and engineers looking to prototype or test LED lighting solutions.

STMicroelectronics provides comprehensive technical documentation for the STEVAL-ILL066V2, including datasheets, application notes, and design guides to assist users in quickly integrating the board into their projects.
