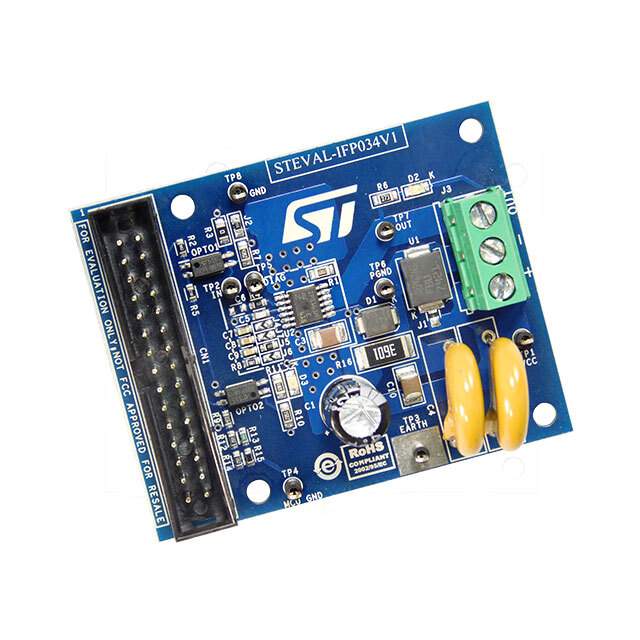

The STEVAL-IFP034V1 is a demonstration board from STMicroelectronics, designed to showcase the features and capabilities of the ISO8200AQ galvanic isolated octal high-side smart power solid-state relay. This evaluation board is a powerful tool for engineers and designers looking to explore the functionalities of an advanced power management solution for industrial automation applications.

Key Features:

• Integrated ISO8200AQ: The board comes equipped with the ISO8200AQ, a highly integrated, high-side switch with eight channels, providing efficient power distribution and control.
• Galvanic Isolation: Safety is a priority with the STEVAL-IFP034V1, as it features galvanic isolation between the microcontroller logic side and the power side, enhancing system reliability and longevity.
• Diagnostic Functions: The board includes advanced diagnostic features for each channel, such as feedback on the status of the output, overload and over-temperature conditions, enhancing system monitoring and protection.
• Flexible Power Supply: The evaluation board can be powered by a wide range of supply voltages, accommodating various industrial scenarios.
• Compact Design: With its small form factor, the STEVAL-IFP034V1 is designed for ease of integration into existing systems without requiring significant space.

Applications:

The STEVAL-IFP034V1 is ideal for a variety of industrial applications, including:

• PLC (Programmable Logic Controllers)
• Industrial PC peripheral I/O
• Factory automation and process control
• Robotics

Benefits:

Using the STEVAL-IFP034V1 evaluation board brings several benefits to developers:

• Reduces time-to-market by simplifying the design process with a ready-to-use, tested solution.
• Improves system safety with built-in isolation and diagnostic features.
• Enables rapid prototyping and testing of the ISO8200AQ in real-world conditions.

In summary, the STEVAL-IFP034V1 from STMicroelectronics is a versatile and robust evaluation board that is perfect for exploring the advanced functionalities of the ISO8200AQ high-side power switch. With its comprehensive features and benefits, it stands out as a valuable tool for any industrial automation project.
